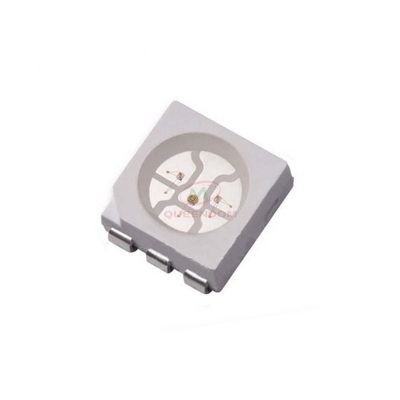

5050 SMD RGB LEDs
Views：1529Release time：2021-10-06 19:42:54
Telephone：+0086 -13612789419
Description： PLCC-4 package. Intelligent reverse connect protection, the power supply reverse connection does not damage the IC. The control circuit and the LED share the only power source. Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate. Built-in electric reset circuit and power lost reset circuit.
Consulting service
Technology

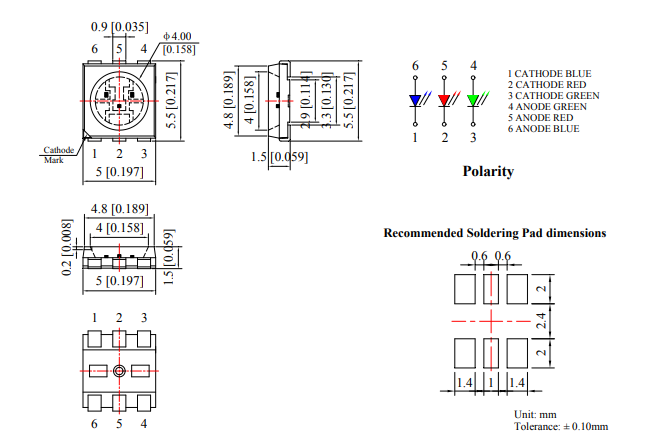

Model:5.00mm×5.00mm×1.5mm (5050) Multi-Color Blinking Chip LED
Peak parameters:
| Ø Absolute Maximum Rating(At TA=25°C) | Symbol | Ratings | Units |
| Parameter | PD | 60 | mW |
| Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current ＊1 | IFP | 100 | mA |
| Reverse Voltage | VR | 5 | V |
| Thermal Resistance Junction To Board | RΘJ-B | / | °C/W |
| Operating Temperature Range | TOPR | Minus 30°C To plus 60°C | |
| Storage Temperature Range | TSTG | Minus 40°C To plus 80°C | |
| Manual Solding Temperature | TSOL | 260°C± 10°C For 3~5 Seconds | |
| ESD Sensitivity | ESD | 2000V HBM |
Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.
Product number::Absolute Maximum Rating(At TA=25°C)
| Parameters | Symbol | Emitting Color | Max. | Unit |
| Red | 60 | |||
| Power Dissipation | PD | Green | 90 | mW |
| Blue | 90 | |||
| Red | 100 | |||
| Peak Forward Current(a) | IFP | Green | 100 | mA |
| Blue | 100 | |||
| Red | 25 | |||
| Continuous Forward Current(b) | IF | Green | 25 | mA |
| Blue | 25 | |||
| Reverse Voltage | VR | 5 | V | |
| Red | 2000 | |||
| Electrostatic Discharge (HBM) | ESD | Green | 400 | V |
| Blue | 400 | |||
| Operating Temperature Range | Topr | -40℃ to +80℃ | ||
| Storage Temperature Range | Tstg | -40℃ to +85℃ | ||
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | ||
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
Queendom offers an extensive range of high qualityMulti-Color SMD LEDs which are small in size, high efficiency and
low powerconsumption.
Multi-color SMD LED products are divided into Bi-colorand Tri-color SMD LEDs. The bi-color SMD LEDs are available
in a wide range ofcolor combinations. The tri-color SMD LEDs provide the freedom to achieve anycombination of colors
by mixing the 3 primary colors, which yields
a widevariety of colors to suit every application and product theme. These productsuse the industry standard footprint
with top-mount, reverse-mount, and rightangle-mount packaging options, and frame type choices including PLCC LED
(reflector) and Chip LEDs (PCB).
Patch product features:
Small size ,High brightness , Low attenuation , Instant lighting,Long life ,Multiple colors to choose from
Product application:
Backlight module ,Automotive interior , High-end digital, Signal indication ,Smart home , Industrial equipment
LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc
reading lighting (reading lights for airplanes, trains and cars),
Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;switch backlights,
Backlight: LCD, LCD TV backlight.
Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,
electrical product indicators (switches, audio, etc.), reading lights, and external brake lights,
Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
More LED light-emitting diode products:
| 1005 LED SMD Lamp | 3010 SMDBi polar Leds | 5050 LED SMD Lamp |
| 1606 LED SMD Lamp | 3227LED SMD Lamp | 5050 SMDBi polar Leds |
| 1608 LED SMD Lamp | 2012LED SMD RGB Lamp | 5050 RGB polar Leds |
| 2012 LED SMD Lamp | 2835LED SMD Lamp | 1W imitation lumens RGB-6 feet |
| 3010 LED SMD Lamp | 3528LED SMD Lamp | 3W imitation lumens Leds |
| 3216 LED SMD Lamp | 2835LED SMD Lamp | 1-3W imitation lumens Leds |
| 3216 LED SMD Lamp | 3528LED SMD Lamp | imitation lumens -6 feet |
| 1608 LED SMD Bi polar Leds | 2835LED SMD RGB | 3W imitation lumens RGB -6 feet |
| 2018 LED SMD Bi polar Leds | 3528LED SMD RGB | For more information, customer service |
