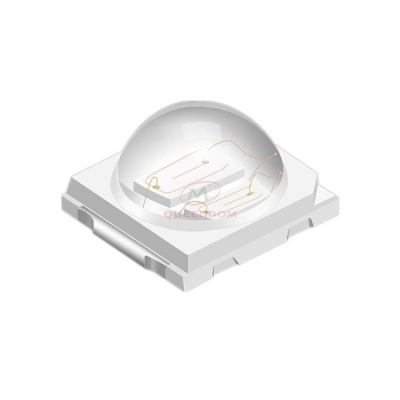

5050RGB-4 Pin RGB LEDs
Views：1632Release time：2021-10-06 20:10:07
Telephone：+0086 -13612789419
Description：The control circuit and the RGB chip are integrated in a 5050 packaged component to form a complete external control pixel. Built-in signal shaping circuit, any pixel point receives the signal after waveform shaping and then output, to ensure that the line waveform distortion will not accumulate. Built-in power-on reset and power-down reset circuits.
Consulting service
Technology

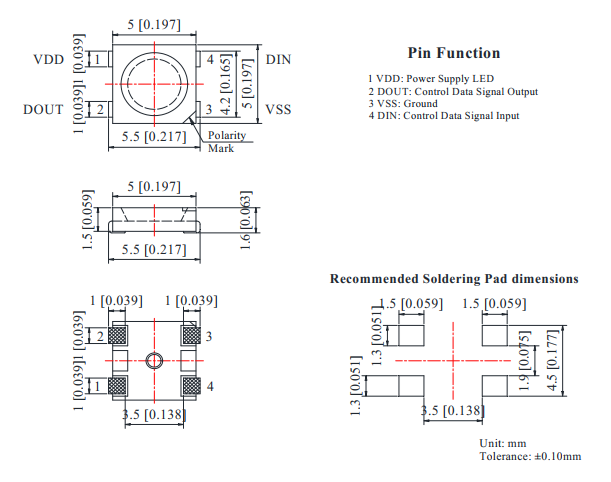

Model:5.00mm×5.00mm×1.5mm (5050) Multi-Color Blinking Chip LED 4 Pin RGB LEDs
Peak parameters:
| Ø Absolute Maximum Rating(At TA=25°C) | Symbol | Ratings | Units |
| Parameter | PD | 60 | mW |
| Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current ＊1 | IFP | 100 | mA |
| Reverse Voltage | VR | 5 | V |
| Thermal Resistance Junction To Board | RΘJ-B | / | °C/W |
| Operating Temperature Range | TOPR | Minus 30°C To plus 60°C | |
| Storage Temperature Range | TSTG | Minus 40°C To plus 80°C | |
| Manual Solding Temperature | TSOL | 260°C± 10°C For 3~5 Seconds | |
| ESD Sensitivity | ESD | 2000V HBM |

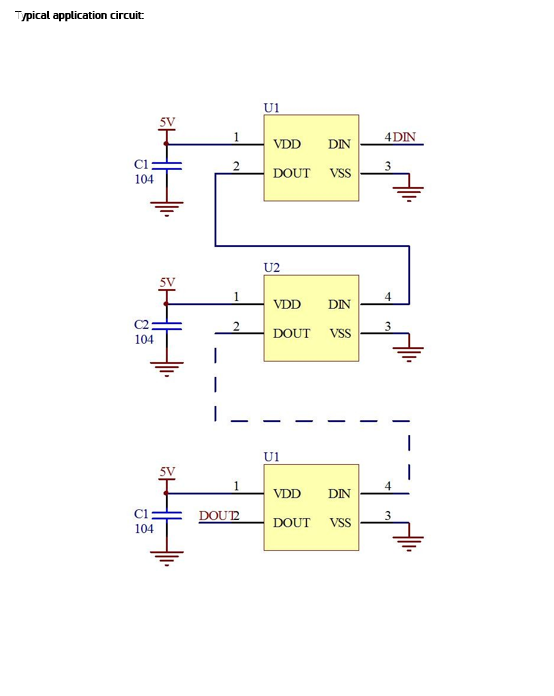

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

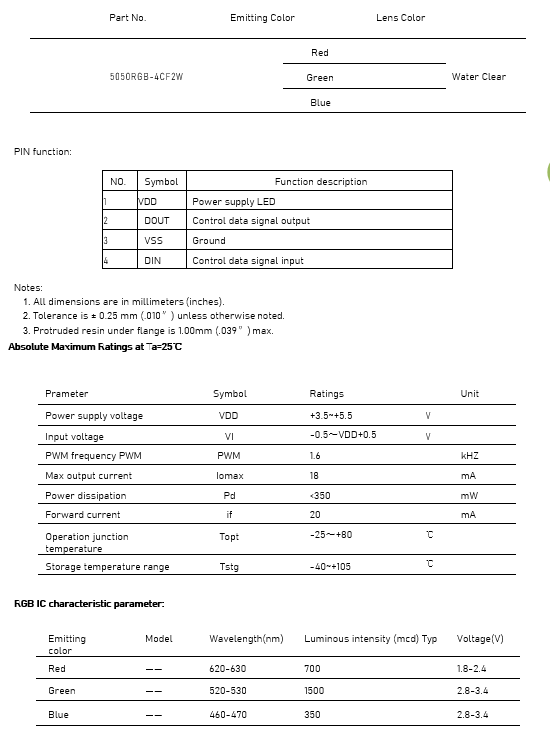

Product number::Absolute Maximum Rating(At TA=25°C)

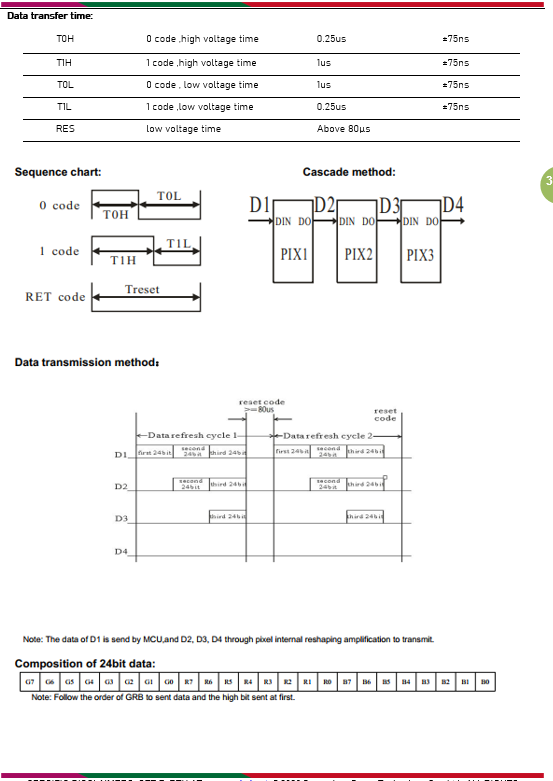

Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
Queendom offers an extensive range of high qualityMulti-Color SMD LEDs which are small in size, high efficiency and
low powerconsumption.
Multi-color SMD LED products are divided into Bi-colorand Tri-color SMD LEDs. The bi-color SMD LEDs are available
in a wide range ofcolor combinations. The tri-color SMD LEDs provide the freedom to achieve anycombination of colors
by mixing the 3 primary colors, which yields
a widevariety of colors to suit every application and product theme. These productsuse the industry standard footprint
with top-mount, reverse-mount, and rightangle-mount packaging options, and frame type choices including PLCC LED
(reflector) and Chip LEDs (PCB).
Patch product features:
Small size ,High brightness , Low attenuation , Instant lighting,Long life ,Multiple colors to choose from
Product application:
Backlight module ,Automotive interior , High-end digital, Signal indication ,Smart home , Industrial equipment
LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc
reading lighting (reading lights for airplanes, trains and cars),
Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;switch backlights,
Backlight: LCD, LCD TV backlight.
Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,
electrical product indicators (switches, audio, etc.), reading lights, and external brake lights,
Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
