2012  Multi-Color SMD LED

2012 Multi-Color SMD LED

Views:2069
Release time:2021-01-23 18:17:27
Telephone:+0086 -13612789419


Description:Queendom offers an extensive range of high qualityMulti-Color SMD LEDs which are small in size, high efficiency and low powerconsumption. Multi-color SMD LED products are divided into Bi-colorand Tri-color SMD LEDs. The bi-color SMD LEDs are available in a wide range ofcolor combinations. The tri-color SMD LEDs provide the freedom to achieve anycombination of colors by mixing the 3 primary colors, which yields a widevariety of colors to suit every application and product theme. These productsuse the industry standard footprint with top-mount, reverse-mount, and rightangle-mount packaging options, and frame type choices including PLCC LED (reflector) and Chip LEDs (PCB).

Consulting service
Product details

Performance

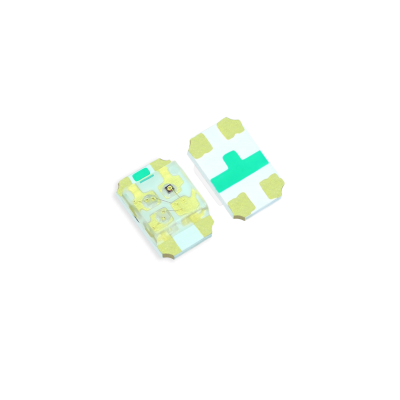

Model:2.00mm×1.25mm×1.10mm (0805) Single Color Chip LED



Peak parameters:

Ø   Absolute Maximum Rating(At TA=25°C)     SymbolRatingsUnits
ParameterPD60mW
Continuous   Forward CurrentIF20mA
Peak Forward Current *1IFP100mA
Reverse   VoltageVR5V
Thermal Resistance Junction To   Board   J-B/°C/W
Operating   Temperature RangeTOPRMinus 30°C To plus 60°C
Storage Temperature RangeTSTGMinus 40°C To   plus 80°C
Manual   Solding TemperatureTSOL260°C± 10°C For 3~5 Seconds
ESD SensitivityESD2000V HBM

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

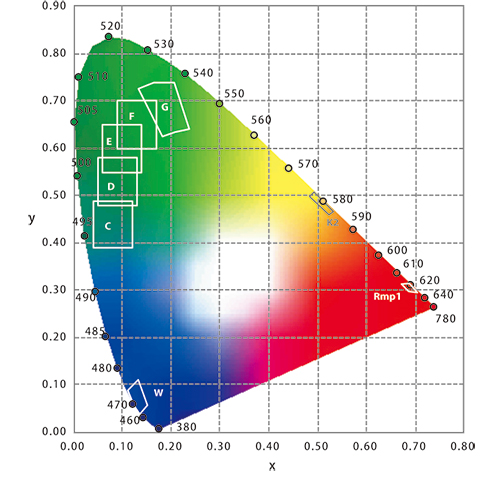

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

Application areas:


Technology

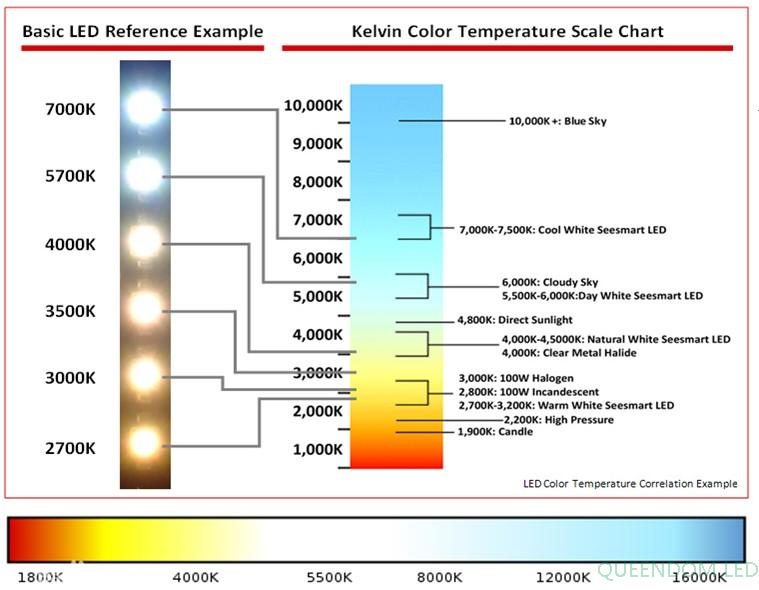

Color classification and color temperature display

20210122



Patch product features:

Small size   High brightness  Low attenuation  Instant lightingLong life Multiple colors to choose from

Product application:

Backlight module Automotive interior  High-end digital Signal indication Smart home  Industrial equipment

LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc

reading lighting (reading lights for airplanes, trains and cars),

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;switch backlights,

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), reading lights, and external brake lights,

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.


Application

汽车装修灯 (2).jpg

汽车装修灯 (6).jpg

Queendom offers an extensive range of high qualityMulti-Color SMD LEDs which are small in size, high efficiency and

low powerconsumption.



Multi-color SMD LED products are divided into Bi-colorand Tri-color SMD LEDs. The bi-color SMD LEDs are available

 in a wide range ofcolor combinations. The tri-color SMD LEDs provide the freedom to achieve anycombination of colors

 by mixing the 3 primary colors, which yields

a widevariety of colors to suit every application and product theme. These productsuse the industry standard footprint

with top-mount, reverse-mount, and rightangle-mount packaging options, and frame type choices including PLCC LED

(reflector) and Chip LEDs (PCB).




Multi-color SMD LEDs are used in a variety ofapplications including automotive interior and indication lighting, LCD andpush

 button backlighting, white goods and appliances, industrial measurementand control systems, and for symbol lighting

and status indication in computerperipherals and consumer goods.



Multi-color PLCC SMD LEDs series is perfectly suited fora variety of cross-industrial applications due to its small

package outline,durability and superior brightness. Its versatility and reliability

 make it apreferred choice for automotive interior lighting specifically asinstrumentation panel, central console and

 cabin backlighting. Besides, iteffectively combines performance and innovation, making it a perfect choice foroffice

automation, home applications, various decorations lighting, commerciallighting and industrial equipment application.
