2835 RGB SMD LED
Views：1726Release time：2021-06-14 18:38:00
Telephone：+0086 -13612789419
Description：QUEENDOM Technology specializes intheproduction and sales: SMD 2835 LED lamp beads, 2835 high voltage LEDlampbeads, SMD high voltage lamp beads, 2835 SMD light-emitting diodes, SMDLEDs,SMD 2835 lamp beads, high voltage drive SMD lamp beads, LEDLight-emittingdiode, LED chip lamp beads, 1W2835 lamp beads and other series ofchip LED lampbeads
Consulting service
Performance
Model:2.80mm×3.50mm×0.70mm Multi-Color SMD LED
Peak parameters:
| Ø Absolute Maximum Rating(At TA=25°C) | Symbol | Ratings | Units |
| Parameter | PD | 60 | mW |
| Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current ＊1 | IFP | 100 | mA |
| Reverse Voltage | VR | 5 | V |
| Thermal Resistance Junction To Board | RΘJ-B | / | °C/W |
| Operating Temperature Range | TOPR | Minus 30°C To plus 60°C | |
| Storage Temperature Range | TSTG | Minus 40°C To plus 80°C | |
| Manual Solding Temperature | TSOL | 260°C± 10°C For 3~5 Seconds | |
| ESD Sensitivity | ESD | 2000V HBM |
Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.
Product number::Absolute Maximum Rating(At TA=25°C)
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

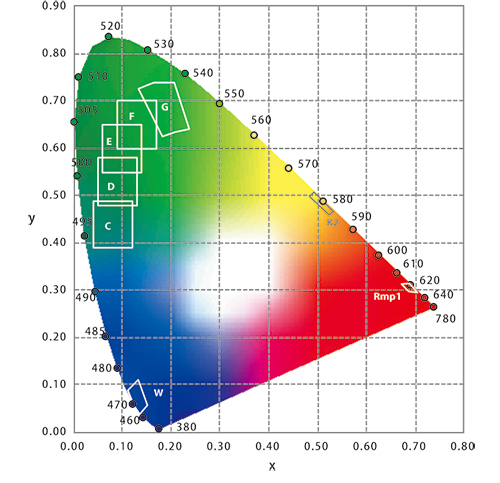

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
Technology

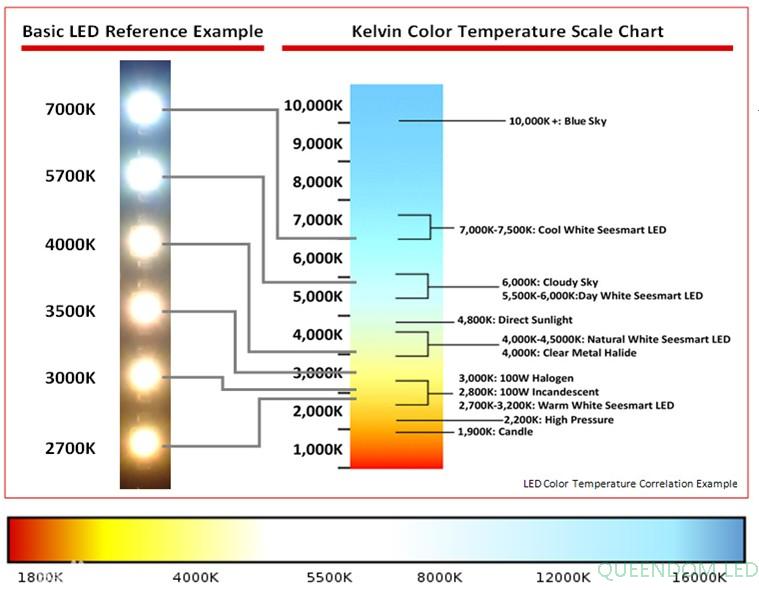

Color classification and color temperature display
Patch product features:
Small size 、High brightness 、 Low attenuation 、 Instant lighting、Long life 、Multiple colors to choose from
Product application:
Backlight module 、Automotive interior 、 High-end digital、 Signal indication 、Smart home 、 Industrial equipment
LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc
reading lighting (reading lights for airplanes, trains and cars),
Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;switch backlights,
Backlight: LCD, LCD TV backlight.
Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,
electrical product indicators (switches, audio, etc.), reading lights, and external brake lights,
Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
Application
Application areas:
Queendom offers an extensive range of high qualityMulti-Color SMD LEDs which are small in size, high efficiency and
low powerconsumption.
Multi-color SMD LED products are divided into Bi-colorand Tri-color SMD LEDs. The bi-color SMD LEDs are available
in a wide range ofcolor combinations. The tri-color SMD LEDs provide the freedom to achieve anycombination of colors
by mixing the 3 primary colors, which yields
a widevariety of colors to suit every application and product theme. These productsuse the industry standard footprint
with top-mount, reverse-mount, and rightangle-mount packaging options, and frame type choices including PLCC LED
(reflector) and Chip LEDs (PCB).
Multi-color SMD LEDs are used in a variety ofapplications including automotive interior and indication lighting, LCD andpush
button backlighting, white goods and appliances, industrial measurementand control systems, and for symbol lighting
and status indication in computerperipherals and consumer goods.
Multi-color PLCC SMD LEDs series is perfectly suited fora variety of cross-industrial applications due to its small package
outline,durability and superior brightness. Its versatility and reliability
make it apreferred choice for automotive interior lighting specifically asinstrumentation panel, central console and
cabin backlighting. Besides, iteffectively combines performance and innovation, making it a perfect choice foroffice
automation, home applications, various decorations lighting, commerciallighting and industrial equipment application.
