1W Multi-Color HighPower LED's

Views:1949
Release time:2022-03-19 18:09:58
Telephone:+0086 -13612789419


Description:eatures:  long operating life  Small footprint and low profile  Energy efficient  High current operation  Silicone encapsulation  Available in 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K and 10000K  The product itself will remain within RoHS compliant Version

Consulting service
Product details

Performance

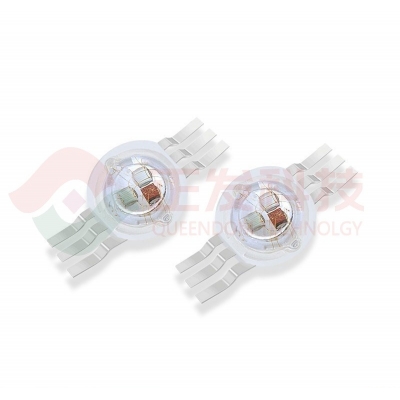

model:1W   Multi-Color HighPower LED's -Imitation Lumen Series

Peak parameters:

  • Absolute Maximum Rating(At TA=25°C)

Parameter

Symbol

Ratings

Units

Power Dissipation

PD

1

W

Continuous Forward   Current

IF

350

mA

LED Junction   Temperature

TJ

120

°C

Reverse Voltage

VR

5

V

Thermal Resistance Junction To Board

J-B

15

°C/W

Operating Temperature   Range

TOPR

-40to +85

Storage Temperature   Range

TSTG

-40to +85

Manual Solding   Temperature

TSOL

225°C± 10°C For 3~5   Seconds

ESD Sensitivity

ESD

2000V HBM

Notes: Tolerance :10% (

Notes:

a.Derate linearly asshown in deratingcurve.

b.Duty Factor = 10%,Frequency = 1kHz

Product number::Absolute Maximum Rating(At TA=25°C)

PR3CD

Red

Red

2.0-2.3

35-50

1W

350

620-630

PG3CD

P-Green

Pure Green

3.0-3.3

80-110

1W

350

520-530

PB3CD

Blue

Pure Green

3.0-3.3

15-30

1W

350

460-470

PRGB3CD

RGB

RGB

2.0-3.3

35/80/45

1W

350

R:620-630/G:520-530/B:460-470



Notes:Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from the

CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.


product properties:

Using epistar chip, high temperature resistantJapanese glue, 99.99% pure gold wire welding;

Colloid color: can be customized according torequirements: colored fog, colorless fog, colored and

transparent, colorlessand transparent

Luminous color: can be customized according torequirements: white, red, orange, yellow, ordinary green,

emerald green, blue,two colors

Light emitting angle: 120±5° (the angle can beadjusted according to customer requirements)

Product features: high light efficiency,anti-high temperature, anti-dead lamp, anti-static

Certification standards: SGS certificate in linewith EU ROHS, EN60425, REACH standards

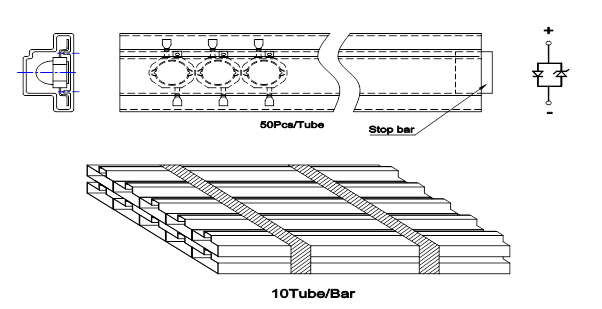

Tube: 50-100pcs/piece

Tray: 1000PCS/bag anti-static bag



package:


Product display effect

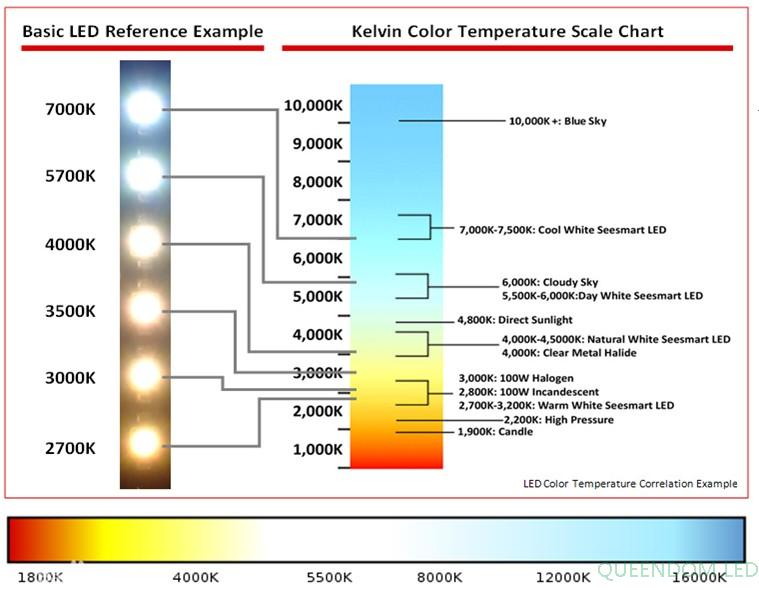

Color temperature range [effect display]

白光色温参考表.jpg色温效果图 (6).jpg

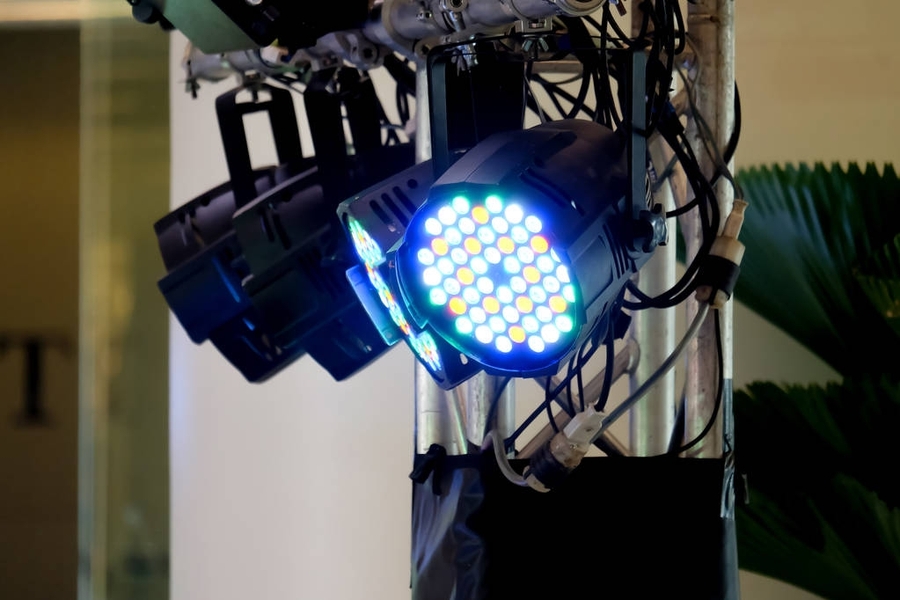

Application range [effect display]

Fluorescent lamp, street lamp, ceiling lamp, flood light, wall washer, underground lamp, courtyard lamp, high bay lamp,

ceiling lamp, bulb lamp, spot lamp, corn lamp, module, etc.


Application areas:

LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipment function

instructions in major and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights), reading lighting

(reading lights for airplanes, trains, and cars),

microscope lights, camera flashes,


Table lamp, street lamp; safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards, electrical

product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights, tail lights, side lights

and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.






High-power LED lamp beads|LED lamp beads|3W high-power LED lamp beads|3W purple high-power lamp beads|3W infrared high-power LED|3W white light LED lamp beads|imitation lumen high-power lamp beads|LED high-power lamp beads|large Power 3W lamp beads

There is a complete range of positive lighting products, including LED lamp beads, high-power LED lamp beads, in-line ultra-high-brightness LED series, high-power series, SMD patch series, infrared transmitter and receiver series, which can be widely used in LED flashlights,


Electronic toys, electrical appliances, digital products, optical mice, backlights, traffic lights, energy-saving lamps, automotive meters, automotive taillights, LED displays, electronic displays, and indicating electronics.


Technology

HighPower LED, or high-power Light Emitting Diode, is designed in order to operateat several hundred mA and power of 1W or more. Because

high power LEDs generatea large amount of heat, special heat dissipation technologies are used withthem.

Queendomoffers a variety of high power LEDs for a wide range of lighting applications.High power LEDs include 1W, 3W, 5W and other options,

and white color typesinclude cool white, neutral white and warm white, which are in different colortemperature range from 2600K to 11000K.

Custom color temperature ranges areavailable.HighPower LED products are used in a variety of applications including Contourlighting,

Stairway lighting, Outdoor floodlights, Landscape lighting, Securityand Automotive and more.

Queendom  Light offers many kinds of high power LEDswhich are categorized by Forward (Driven) Current, Flux, Color temperature andCRI.

The parametric filters on our website can help refine your search resultsdepending on the required specifications.
