1W High Power LED
Views:2528Release time:2022-03-19 18:08:29
Telephone:+0086 -13612789419
Description: The series is available in Red, Orange, Yellow, Green, Blue and White. The White Power LED is available in the range of color temperature from 2700K to 10000K This 3W Power LED Light Source is a high energy efficient device which can handle high thermal and high driving current. The exposed pad design enables excellent heat transfer from the package to the motherboard The package design is suitable for a wide variety of applications especially where height is a constraint.
Consulting service
Technology

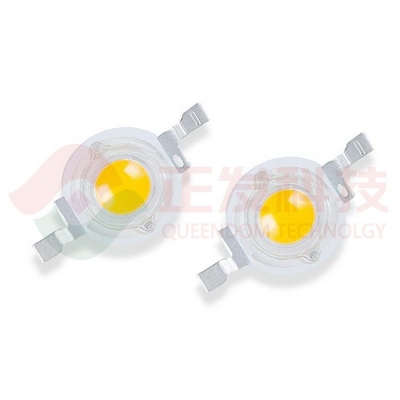

model:1W HighPower LED's -Imitation Lumen Series
Peak parameters:
Absolute Maximum Rating(At TA=25°C)
Parameter | Symbol | Ratings | Units |
Power Dissipation | PD | 1 | W |
Continuous Forward Current | IF | 350 | mA |
LED Junction Temperature | TJ | 120 | °C |
Reverse Voltage | VR | 5 | V |
Thermal Resistance Junction To Board | RΘJ-B | 15 | °C/W |
Operating Temperature Range | TOPR | -40℃to +85℃ | |
Storage Temperature Range | TSTG | -40℃to +85℃ | |
Manual Solding Temperature | TSOL | 225°C± 10°C For 3~5 Seconds | |
ESD Sensitivity | ESD | 2000V HBM |
Notes: Tolerance :10% (
Notes:
a.Derate linearly asshown in deratingcurve.
b.Duty Factor = 10%,Frequency = 1kHz

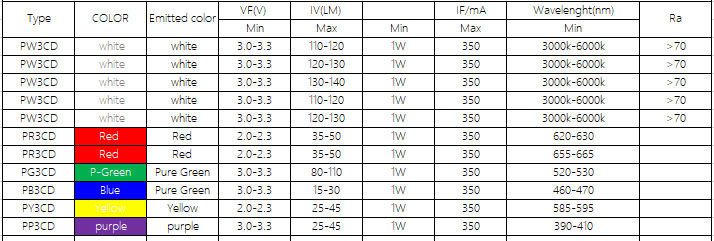

Product number::Absolute Maximum Rating(At TA=25°C)
Notes:Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from the
CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
product properties:
Using epistar chip, high temperature resistantJapanese glue, 99.99% pure gold wire welding;
Colloid color: can be customized according torequirements: colored fog, colorless fog, colored and
transparent, colorlessand transparent
Luminous color: can be customized according torequirements: white, red, orange, yellow, ordinary green,
emerald green, blue,two colors
Light emitting angle: 120±5° (the angle can beadjusted according to customer requirements)
Product features: high light efficiency,anti-high temperature, anti-dead lamp, anti-static
Certification standards: SGS certificate in linewith EU ROHS, EN60425, REACH standards

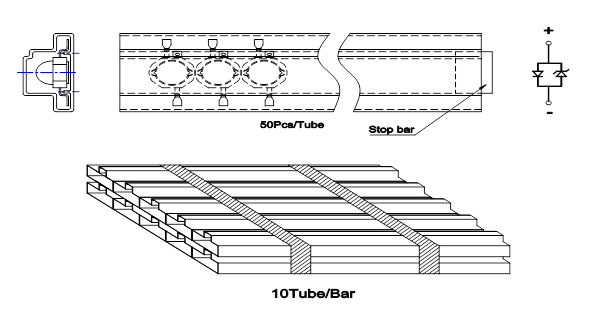

Tube: 50-100pcs/piece
Tray: 1000PCS/bag anti-static bag
package:

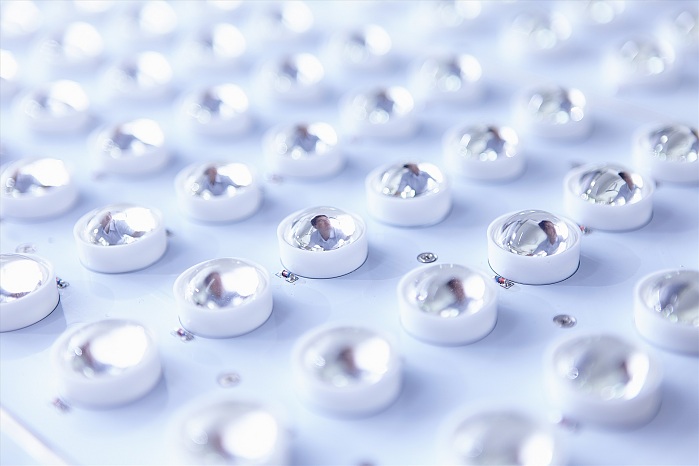

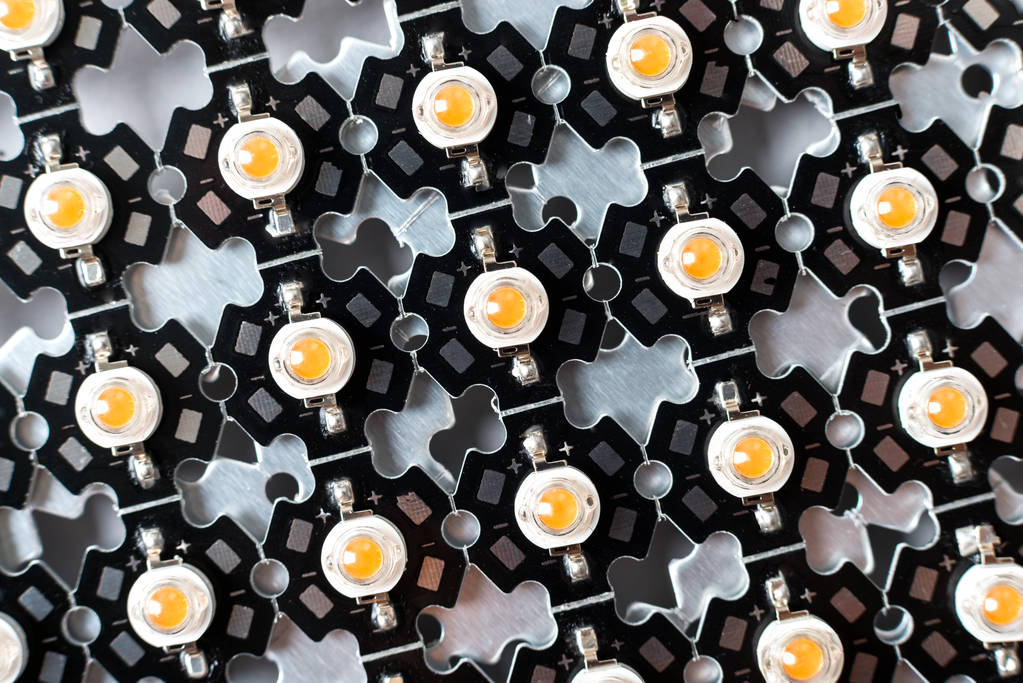

Product display effect

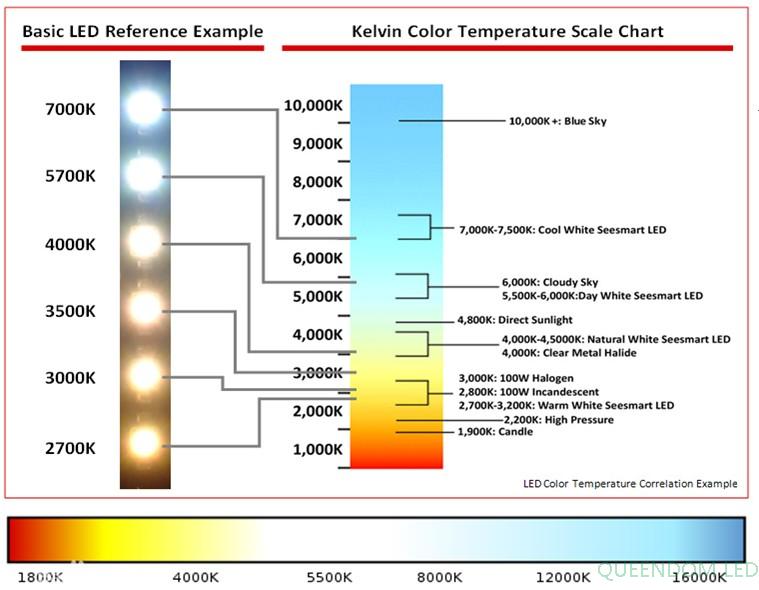

Color temperature range [effect display]

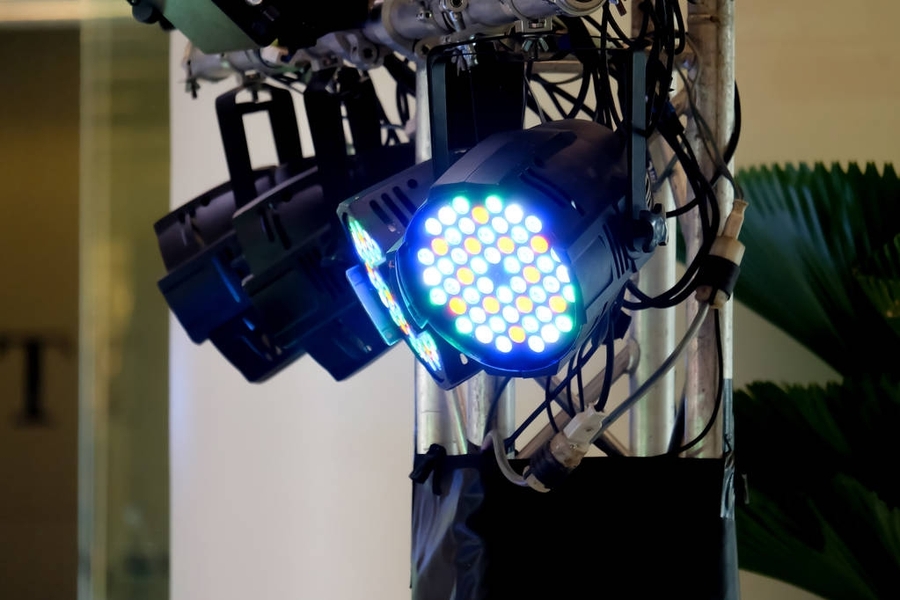

Application range [effect display]
Fluorescent lamp, street lamp, ceiling lamp, flood light, wall washer, underground lamp, courtyard lamp, high bay lamp,
ceiling lamp, bulb lamp, spot lamp, corn lamp, module, etc.
Application areas:
LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.
Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipment function
instructions in major and medium cities across the country;
Light color lighting: outdoor landscape lighting and indoor decorative lighting;
Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights), reading lighting
(reading lights for airplanes, trains, and cars),
microscope lights, camera flashes,
Table lamp, street lamp; safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;
Backlight: LCD, LCD TV backlight.
Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards, electrical
product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights, tail lights, side lights
and headlights, etc. .
Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
mp beads|3W infrared high-power LED|3W white light LED lamp beads|imitation lumen high-power lamp beads|LED high-power lamp beads|large Power 3W lamp beads
There is a complete range of positive lighting products, including LED lamp beads, high-power LED lamp beads, in-line ultra-high-brightness LED series, high-power series, SMD patch series, infrared transmitter and receiver series, which can be widely used in LED flashlights,
Electronic toys, electrical appliances, digital products, optical mice, backlights, traffic lights, energy-saving lamps, automotive meters, automotive taillights, LED displays, electronic displays, and indicating electronics.
Application
HighPower LED, or high-power Light Emitting Diode, is designed in order to operateat several hundred mA and power of 1W or more. Because
high power LEDs generatea large amount of heat, special heat dissipation technologies are used withthem.
Queendomoffers a variety of high power LEDs for a wide range of lighting applications.High power LEDs include 1W, 3W, 5W and other options,
and white color typesinclude cool white, neutral white and warm white, which are in different colortemperature range from 2600K to 11000K.
Custom color temperature ranges areavailable.HighPower LED products are used in a variety of applications including Contourlighting,
Stairway lighting, Outdoor floodlights, Landscape lighting, Securityand Automotive and more.
Queendom Light offers many kinds of high power LEDswhich are categorized by Forward (Driven) Current, Flux, Color temperature andCRI.
The parametric filters on our website can help refine your search resultsdepending on the required specifications.
