8mm Round Leds

Views:1758
Release time:2021-11-12 20:23:00
Telephone:+0086 -13612789419


Description:Product introduction: Model: 8MM plug-in concave Size: φ8mm Features: low light attenuation, high luminous brightness, high efficiency and power saving, stable performance, long life, simple use and many other advantages. The product has undergone strict reliability experiments and has high reliability. RoHS, REACH certification Application areas: household appliances, 3C digital products, lighting, gifts, toys, traffic lights, communications products, etc.

Consulting service
Product details

Technology

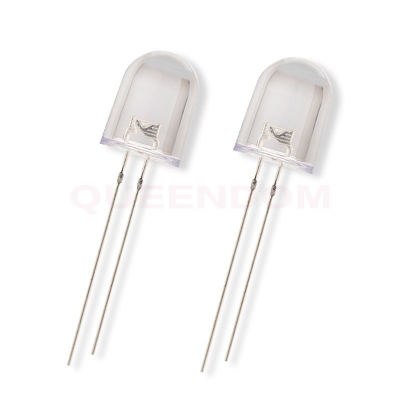

Model: 8mm Round Clear Leds   Size: φ8mm



Peak parameters:


Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

product properties:

Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;

Colloid color: can becustomized according to requirements: colored fog, colorless fog, colored andtransparent, colorless and transparent

Luminous color: can becustomized according to requirements: white, red, orange, yellow, ordinarygreen, emerald green, blue, two colors

Light emitting angle: 25±5°(the angle can be adjusted according to customer requirements)

Product features: highlight efficiency, anti-high temperature, anti-dead lamp, anti-static

Certification standards:SGS certificate in line with EU ROHS, EN60425, REACH standards

Packing: 500-1000pcs/bag inanti-static bag


Through-hole Cylindrical LEDs aresuitable for all applications requiring instruments, switches, iconbacklighting, and general status

 indication. There are 3 types oftechnology-based LEDs lamps. The chips with GaP technology are for low tomoderate light output

 requirements, and the ones with AllnGaP and  InGaNtechnologies are for high brightness light output.

Through-hole Cylindrical LEDs areoffered in a variety of packages such as 3mm, 4mm, 5mm 8mm 10mm, withintegrated built-in resistor or low current options, and color choices includegreen, red, yellow, white, blue and orange.

These devices are molded from advancedoptical grade epoxy, which provide superior high temperature performance andexcellent moisture

 resistance. Diffused, color transparent and optical designare balanced to yield superior light output. Several intensity choices areavailable

 in each color for increasing design flexibility.

Application areas:


手电效果图 (6).jpg

Color classification and color temperature display

20210122



LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ;

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
