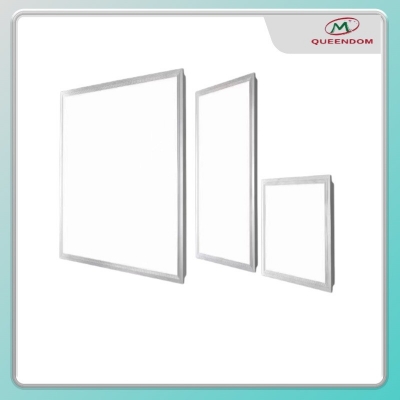

Smart LED Panel Light

Views：23
Release time：2025-09-22 18:50:32
Telephone：+0086 -13612789419

Description：The Smart LED Panel Light is designed to deliver the perfect balance of technology, comfort, and efficiency. Featuring full-spectrum lighting with tunable white CCT (3000K–6500K) and seamless stepless dimming, this panel adapts to any environment—from workspaces to modern homes. With smart control options (APP, remote, or voice assistant), users can easily switch modes, adjust brightness, or create personalized lighting scenes. This makes it an ideal choice for offices, hospitals, schools, retail, and smart home applications.

Consulting service

Product details

Performance

Electrical Performance

Power Range: 36W – 72W
Input Voltage: AC 85–265V / 50–60Hz
CCT: 3000K–6500K (Tunable White)
Dimming: 0–100% stepless dimming
CRI: Ra > 80 / >90 optional
Efficiency: >130 lm/W
Lifetime: 50,000 hrs+

Technology

Features

Full-Spectrum Illumination – Mimics natural daylight, reduces eye strain, and improves productivity.
Tunable White & Stepless Dimming – Adjust from warm white to cool daylight (3000K–6500K) with smooth, flicker-free control.
Smart Control Ready – Compatible with WiFi, Bluetooth, or Zigbee systems; supports APP/remote/voice control.
Energy Saving & Long Lifespan – High luminous efficacy, >50,000 hrs lifetime, low maintenance cost.
Slim & Elegant Design – Surface-mounted or recessed installation for modern interiors.
OEM/ODM Available – Custom branding, size, and smart system integration.

SPECIFICATIONS WITH APPROVED DRIVER(AC POWERED)
METRIC	SCP6060	SCP30120
AC VOLTAGE & FREQUENCY: (VAC)	AC 110-275V & 50/60Hz
AC DERATED POWER – TYPICAL (W)	40	50
AC CURRENT (TYP)(MA)	/	/
DIMMABLE	0-10V, PWM
AC CURRENT (TYP)	AC 110-275 V
POWER FACTOR	>0.95
WORKING TEMPERATURE	-40℉ – 113℉
DRIVER LIFETIME	>50,000 hrs
PHOTOELECTRIC PROPERTIES
WAVELENGTH [1] (nm)	2700K-7000K
INTENSITY FLUX (lm)	6000	7500
CRI	95+	95+
EFFECT (LM/W)	150	150
TYPICAL SPECTRAL HALF-WIDTH(K)	200	200
PRODUCT PERFORMANCE
PRODUCT SIZE & LENGTH (mm)	600	300
PRODUCT SIZE & WIDTH(mm)	600	1200
DEG	220
BASE
HOUSING COLOR	GRAY AND WHITE
PART NUMBER	9405500000LPL04
DRIVER STANDARDS	ETL、CETL、DLC、CE
