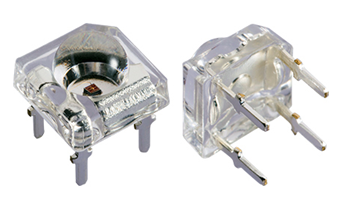

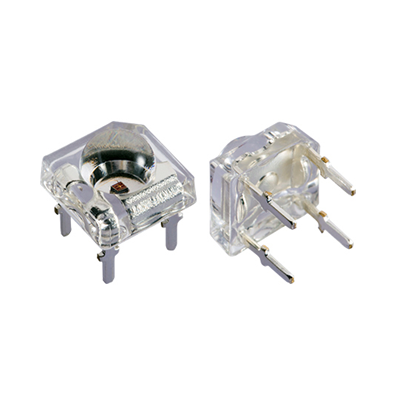

piranha High Power LED
Views：1652Release time：2022-06-07 20:56:47
Telephone：+0086 -13612789419
Description：Specifications of medium power piranha lamp beads: - Type: Piranha LED - Model: Medium Power Piranha - Power: 0.06W, 0.1W, 0.5W - Number of chips: single core - Chip brand: Epistar, Cree - Beam angle: 15-90° - Emitting color: red/yellow/blue/green/orange/white
Consulting service
Product details
Technology
| superflux piranha [Mid Power LED] LEDs | |||||||||
| Part Number | Chip | IF(MA) | PW(w) | VF(V) | IV(MCD/LM) | Angleθ1/2 | Lens Type | ||
| Material | Emitted Color | Wave Length λD(nm) | |||||||
| 5mm Super Flux LED [If=60/150mA\0.2-0.5w] | |||||||||
  | |||||||||
| SUB5R309DKB | AlGaInP | Red | 620-635 | 60ma | 0.2W | 1.9-2.3 | 1500-3000 | 100±10 | Water Clear |
| SUB5Y309DKB | AlGaInP | Yellow | 580-595 | 60ma | 0.2W | 1.9-2.3 | 1500-3000 | 100±10 | Water Clear |
| SUB5G309DKB | InGaN | Green | 520-530 | 60ma | 0.2W | 2.9-3.5 | 6000-10000 | 100±10 | Water Clear |
| SUB5B309DKB | InGaN | Blue | 460-470 | 60ma | 0.2W | 2.9-3.5 | 1500-2600 | 100±10 | Water Clear |
| SUB5W309DKB-AC | InGaN | Warm White | x=0.43y=0.40 | 60ma | 0.2W | 2.9-3.5 | 8000-12000 | 100±10 | Water Clear |
| SUB5W309DKB-CC | InGaN | Positive white | x=0.31y=0.32 | 60ma | 0.2W | 2.9-3.3 | 7500-12000 | 100±10 | Water Clear |
| SUB5R309DKC | AlGaInP | Red | 620-635 | 150ma | 0.5W | 1.9-2.3 | 10-14 | 100±10 | Water Clear |
| SUB5Y309DKC | AlGaInP | Yellow | 580-595 | 150ma | 0.5W | 1.9-2.3 | 10-15 | 100±10 | Water Clear |
| SUB5G309DKC | InGaN | Green | 520-530 | 150ma | 0.5W | 2.9-3.5 | 25-35 | 100±10 | Water Clear |
| SUB5B309DKC | InGaN | Blue | 460-470 | 150ma | 0.5W | 2.9-3.5 | 5-8 | 100±10 | Water Clear |
| SUB5W309DKC-AC | InGaN | Warm White | x=0.43y=0.40 | 150ma | 0.5W | 2.9-3.5 | 30-45 | 100±10 | Water Clear |
| SUB5W309DKC-CC | InGaN | Positive white | x=0.31y=0.32 | 150ma | 0.5W | 2.9-3.3 | 40-55 | 100±10 | Water Clear |
