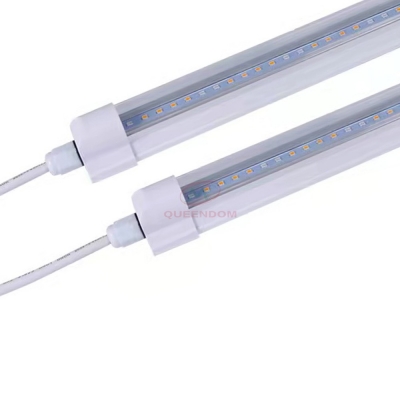

T8 integrated ​row plant light 【IP65】

T8 integrated ​row plant light 【IP65】

Views:1443
Release time:2021-11-11 15:22:34
Telephone:+0086 -13612789419


Description:Full spectrum ratio: 6000K/3000K/red/blue 5:1/ 5:2/ 3:1/ 1:1 High-purity aluminum+PC

Consulting service
Product details

Performance

Specifications

Color temperature  wavelength 300-730nm

Full spectrum ratio:  6000K/3000K/red/blue 5:1/ 5:2/ 3:1/ 1:1

High-purity  aluminum+PC

Waterproof rating:  IP44, IP54, IP65, IP67

operating  temperature: -40°F (-40°C) to +65°F (+10°C).

T8 integrated single row waterproof plant light [square tube IP65]


 Description

diameter
 (mm)

length
 (mm)


 Voltage


 Power/w

Initial Lumens/LM

Color

effect  LM/W

Deg

Color

WPT8FC60CM9W

33mm*36mm

598

AC85-265V

9

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FC90CM13W

33mm*36mm

898

AC85-265V

13

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FC120CM18W

33mm*36mm

1198

AC85-265V

18

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FC150CM24W

33mm*36mm

1498

AC85-265V

24

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FC240CM36W

33mm*36mm

2398

AC85-265V

36

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7


Technology

T8 integrated double row waterproof plant light [square tube IP65]


 Description

diameter
 (mm)

length
 (mm)


 Voltage


 Power/w

Initial Lumens/LM

Color

effect  LM/W

Deg

Color

WPT8FD60CM18W

33mm*36mm

598

AC85-265V

18

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FD90CM36W

33mm*36mm

898

AC85-265V

36

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FD120CM36W

33mm*36mm

1198

AC85-265V

36

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FD150CM48W

33mm*36mm

1498

AC85-265V

48

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

WPT8FD240CM65W

33mm*36mm

2398

AC85-265V

65

100lm/w

300-730nm

6000K/3000K/Red/Blue 5:1/ 5:2/ 3:1/ 1:1

120

PG7

Technical parameter reference link

https://www.china66.net/news/show_46.html


Application

Product Usage:

1. Suitable for plant growth, flowering and fruiting.

2. The red light promotes flowering and the blue light promotes the growth of leaves. Customers can use different lamp beads ratios

according to different plants.

3. It can be used as a supplementary light source to enhance the illumination and delay the illumination time.

4. According to the needs of different plants, the light required by plants can be controlled.

5. It can replace the self-heating light source in the greenhouse and effectively promote the growth of plants


Plant growth lamp description:

transportation and saves transportation fuel. It also reduces the need for pesticides, fertilizers and water.
