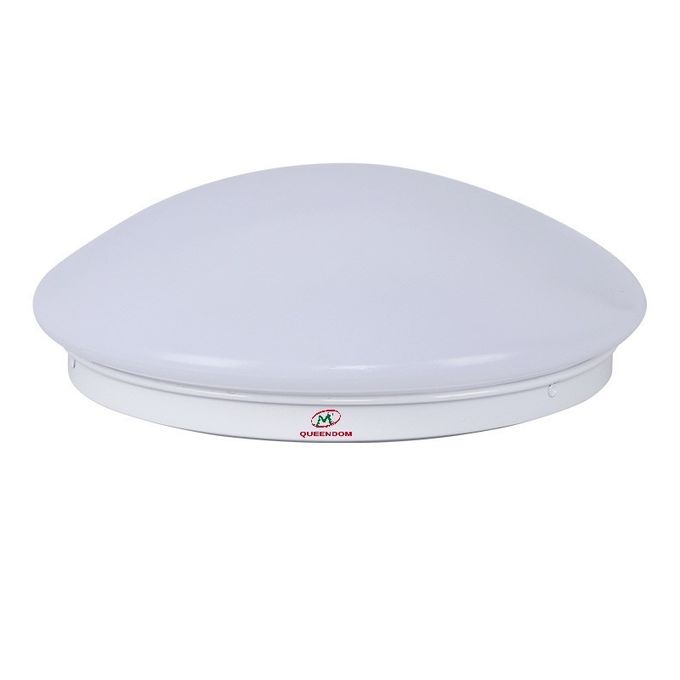

Emergency ceiling lamp
Views：1602Release time：2021-06-17 15:01:07
Telephone：+0086 -13612789419
Description：The main function of the fire emergency ceiling lamp is to be used for lighting in emergency situations. Therefore, high-performance rectifiers and lamps are used in the design and manufacture, which can ensure that the light loss of the fire emergency ceiling lamp is reduced in the use process, and the brightness attenuation process of the lamps is very slow. Therefore, the fire emergency ceiling lamp has a very good performance in luminous efficiency, In the event of an accident, it can provide enough brightness and range of lighting to speed up the evacuation speed
Consulting service
Performance
Technical Descripion ◎High quality nickel-cadmium batteries, battery capacity, continuously charge or discharge 500--1000 times; ◎Unique integrated light/emergency LED light source, energy saving, long working life up to 100,000 hours; ◎The use of switching power supply control circuit, stable performance, can be used in loose voltage environments; ◎Flame-retardant PC material, fashionable appearance; |
Product Model：
| Lighting Resource | Lighting Distribution | ||
| Model | LED-3030 |  | |
| Lamp Model | □CREE / ■晶元 /□OSRAM/ □其它 | ||
| 光源功率 | 24 W | ||
| Watts | |||
| 色温 | □RGB □2700K ■6000K | ||
| 显色指数 | CRI>80Ra | ||
| 光效 | 75lm / w | ||
| Light Efficiency | |||
| 灯具及电器 | |||
| Fixture and Electrical Equipment | |||
| 光束角 /透镜 | ■有透镜 150°（内置） ■PS扩散罩 | ||
| Beam angle | |||
| 灯体材质/颜色 | 烤漆铁壳底盘（乳白） | 灯具尺寸 | |
| Body Material / Color | Fixture Size | ||
| 灯罩材质/颜色 | PS乳白扩散罩 | D380mm*H100mm(具体以实物为准） | |
| Lamp-Chimney Materia /Color | |||
| 防护等级 | IP20 | ||
| Degree of Protection | |||
| 功率(光源数量x光源功率) | 24*1.0W（常规照明）+4*0.5W(应急照明） | ||
| Input Watts | |||
| 灯具发光效率 | >80% | ||
| Light Output Ratio(LOR) | |||
| 输入电压 | AC170V-265V | ||
| Input Voltage | |||
| 控制方式（controller) | 雷达感应+应急电池 | ||
| Gear | □分体独立 □一体外置 ■一体内置 | ||
| 应急时间+功率 | >90min(2W） | ||
| Power+Emergency time | |||
| 感应距离 | 5-8m（亮灯25秒延时） | Product Description | |
| Sensing distance | ■采用优质铝材 | ||
| 灯具尺寸 | D380mm*H100mm(具体以实物为准） | ■采用优质PC罩，出光均匀，不变黄 | |
| Lighting size | ■防护等级IP20 | ||
| 可调照射角度 | 180度 | ||
| Adjusted | |||
| 配件 | 螺丝 | ||
| Accessories | |||
| 灯具寿命（系统非单指光源） | 30000小时 | ||
| System Life time | |||
| 其他 | QUEENDOM | ||
| Others | |||
