257 Square  Diffused  LEDs

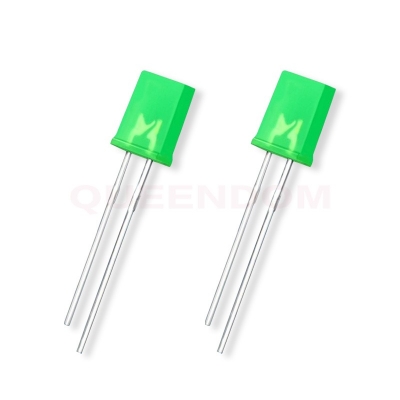

257 Square Diffused LEDs

Views:1625
Release time:2021-11-12 20:27:13
Telephone:+0086 -13612789419


Description:Queendom rectangular through hole LED products are designed for indicator applications, backlighting, industrial equipment, and more. These RGB LEDs features include low power consumption, uniform light output and are available in a variety of colors. Browse our selection, but if you don’t see what you’re looking for please contact us. Through-hole Rectangular LEDs are offered in a variety of packages such as 1.0*5.0mm, 2*3mm, 1.9*3.9mm, 2*5mm, 3*3mm, 3.7*6.3mm, 5*5mm, with integrated built-in resistor or low current options, and color choices include green, red, yellow, white, blue and orange.

Consulting service
Product details

Technology

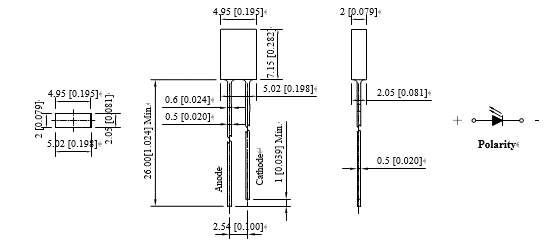

Model: 257 Square  Diffused  LEDs  Size: 2*5*7mm



Peak parameters:

Ø   Absolute Maximum Rating(At TA=25°C)     SymbolRatingsUnits
ParameterPD60mW
Continuous   Forward CurrentIF20mA
Peak Forward Current *1IFP100mA
Reverse   VoltageVR5V
Thermal Resistance Junction To   Board   J-B/°C/W
Operating   Temperature RangeTOPRMinus 30°C To plus 60°C
Storage Temperature RangeTSTGMinus 40°C To   plus 80°C
Manual   Solding TemperatureTSOL260°C± 10°C For 3~5 Seconds
ESD SensitivityESD2000V HBM

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

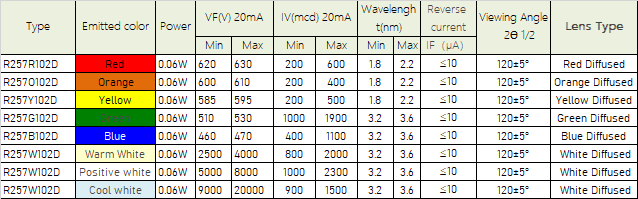

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

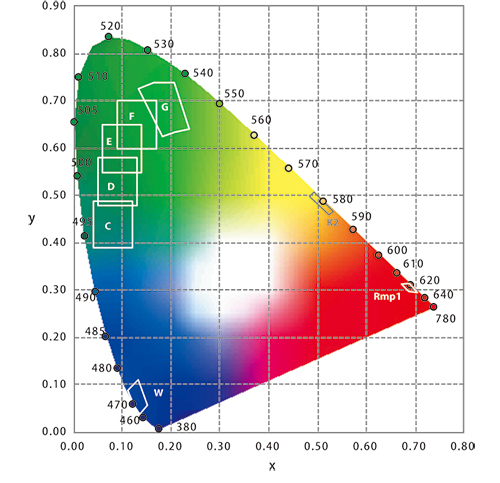

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

product properties: Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;

Colloid color: can be customized according torequirements: colored fog, colorless fog, colored and transparent, colorlessand transparent

Luminous color: can be customized according to requirements:white, red, orange, yellow, ordinary green, emerald green, blue, two

colorsLight emitting

angle: 120±5° (the angle can be adjustedaccording to customer requirements)

Product features: high light efficiency,anti-high temperature, anti-dead lamp, anti-static Certification

standards: SGS certificate in line with EU ROHS,EN60425, REACH standards

Packing: 1000pcs/bag in anti-static bag Colortemperature range [effect display]

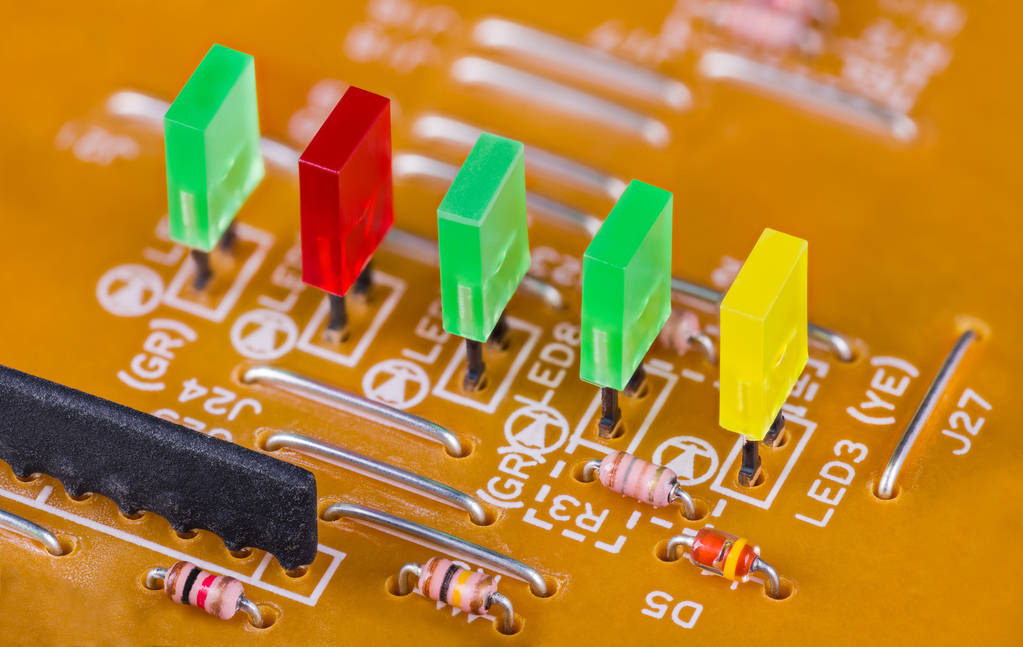

Through-hole Rectangular LEDs aresuitable for all applications requiring instruments, switches, iconbacklighting, and general status

indication. There are 3 types oftechnology based LEDs lamps. The chips with GaP technology are for low tomoderate light output requirements,

and the ones with AllnGaP and InGaNtechnologies are for high brightness light output.

Through-hole Rectangular LEDs areoffered in a variety of packages such as 1.0*5.0mm, 2*3mm, 1.9*3.9mm, 2*5mm,3*3mm, 3.7*6.3mm, 5*5mm,

with integrated built-in resistor or low currentoptions, and color choices include green, red, yellow, white, blue and orange.

These devices are molded from advancedoptical grade epoxy, which provide superior high temperature performance andexcellent moisture

resistance. Diffused, color transparent and optical designare balanced to yield superior light output. Several intensity choices areavailable

in each color for increasing design flexibility.

Application areas:

LED灯珠素材 (4).jpg

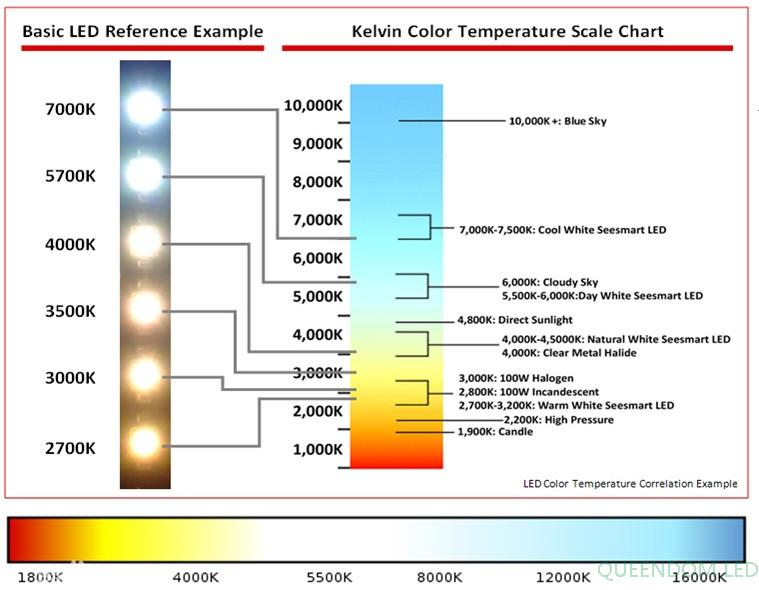

Color classification and color temperature display

20210122



LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ;

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
