T8 low pressure waterproof pipe-single head
Views：1691Release time：2021-01-15 19:39:13
Telephone：+0086 -13612789419

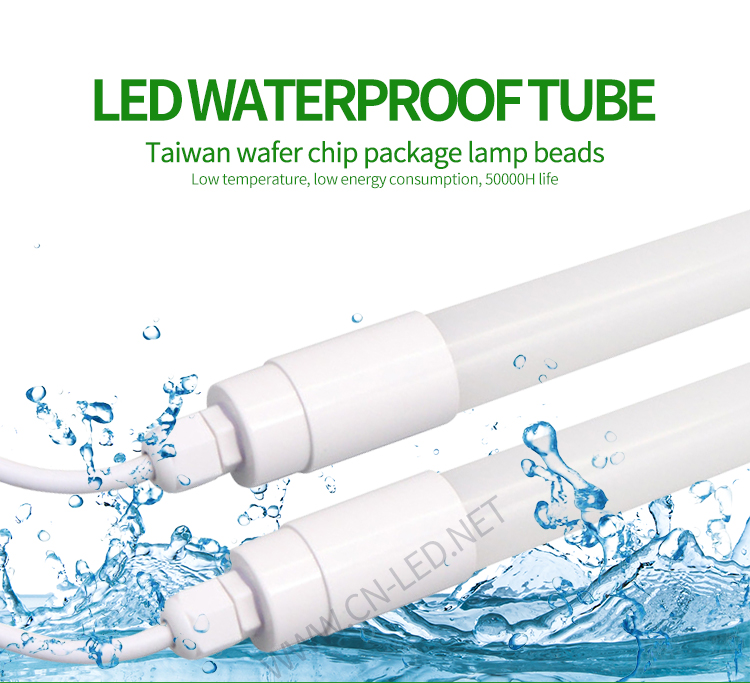

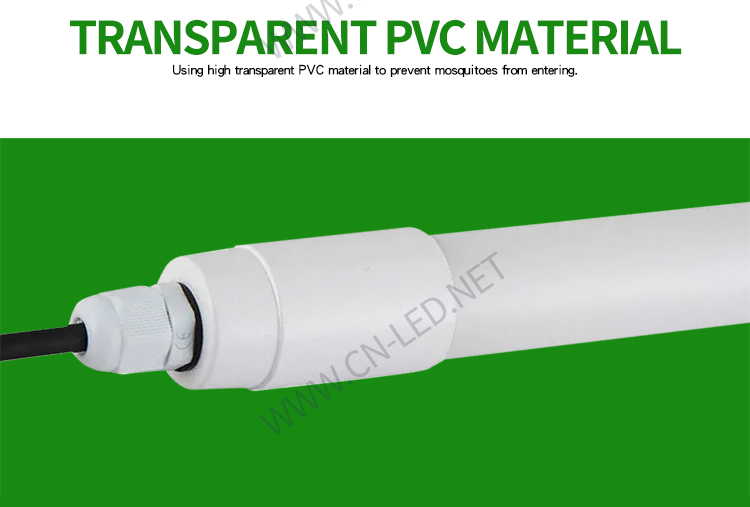

Description：1. The LED waterproof tube has high brightness and color rendering index, soft light, easy to install, and the appearance and size are the same as the traditional integrated bracket, which can be directly replaced with the traditional integrated bracket; 2. The radiator is made of aluminum alloy with high thermal conductivity to ensure that the product can effectively dissipate heat, to ensure the stability and long life of the product, and the appearance is exquisite and beautiful; 3. Energy saving and environmental protection, high efficiency, low carbon, no ultraviolet rays, and no glare. 4. Using LED light source, long life, low power consumption, durable 5. The use of amorphous, odorless, non-toxic, highly transparent PC thermoplastic engineering plastics has excellent physical and mechanical properties and can be used for a long time at low temperatures. 6. The circuit board adopts a full glass fiber circuit board with low water absorption and good moisture resistance, with a thickness of 1.2mm, fast heat dissipation and not easy to break. 7. The structure of the lamp body is made of waterproof stainless steel screws, and the inside is filled with excellent performance sealant. The outer layer is tightly wrapped with a waterproof silicone sleeve, double-layer waterproof, and the protection level reaches IP67. It can fully meet the requirements of general outdoor and freezer.
Consulting service
Technology

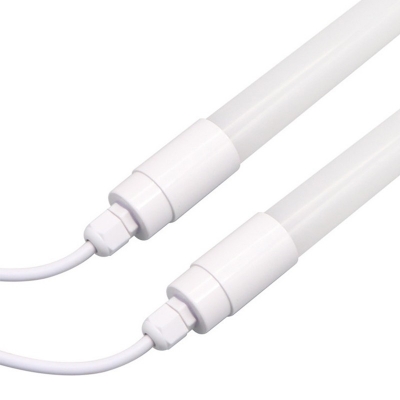

T8 low pressure waterproof pipe-single head

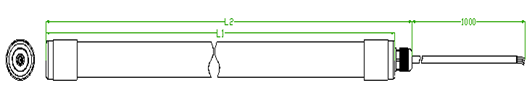

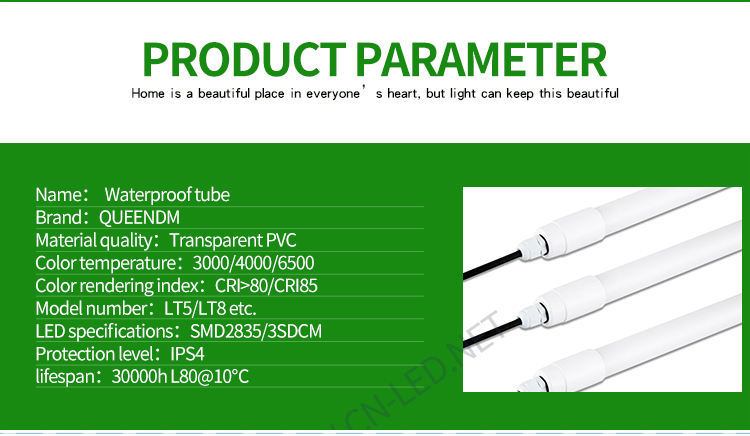

Dimensions

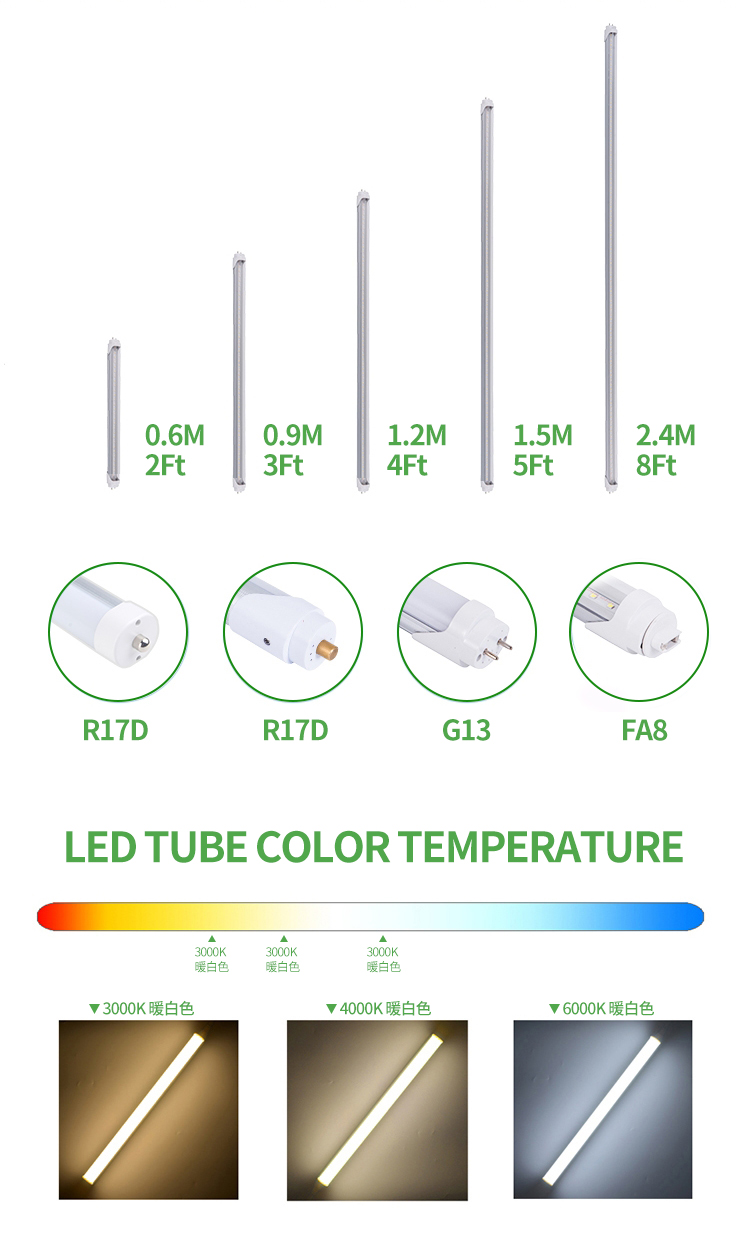

L1：586mm、1196mm、1496mm ， L2：605mm、1215mm、1515mm

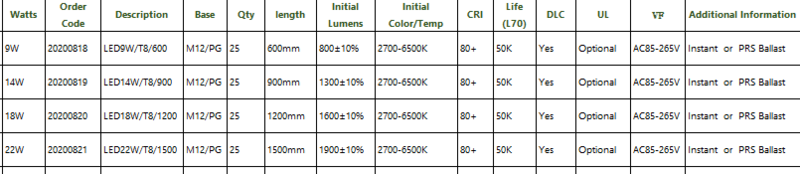

LEDT8 tube 0.9 meters 12W high luminous efficiency, high lumen (light efficiency 95LM/W can be customized
120LM/W tube) high power factor (PF>0.9),Flicker-free LED energy-saving daylight low-voltage waterproof tube.
Product Features
1. Using 1/2 aluminum-plastic tube structure, exquisite appearance and good heat dissipation effect.
2. Built-in constant current drive, high efficiency and stability.

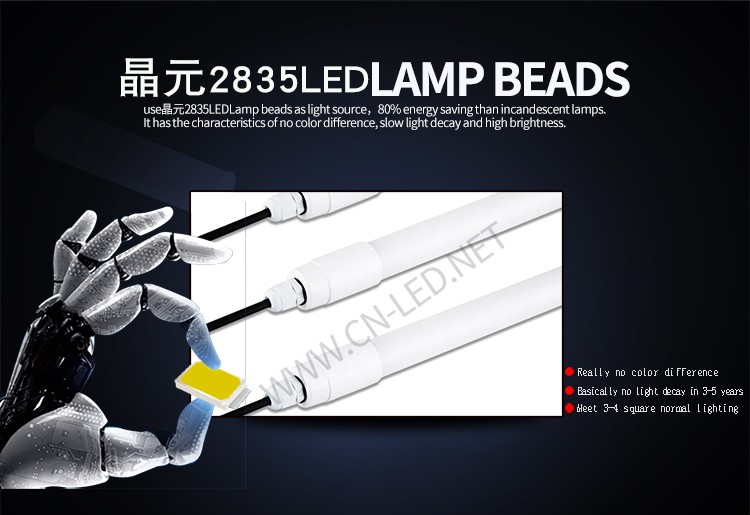

3. Using SMD LED as the light source, high light efficiency and long life.
4. The response time is fast, and the LED response time is nanoseconds.
5. Environmental protection, no heavy metals and harmful gases.
6. Energy saving, 65% energy saving than traditional fluorescent lamps.
7. No stroboscopic, fast start, soft light, eye protection.
8. Easy to install and easy to use.
Precautions
Main matters of installation
The installation of the product must be a professional electrician.
Check the integrity of the product when taking it out of the box.
The distance between the product and flammable materials should be at least 0.2M, and the zenith to be installed should have a gap
of 2 cm. The lamps cannot be installed in the zenith.
Or near walls with heat sources, pay attention to separate low-voltage and high-voltage cables.
The wires on the luminaire can be passed through the drilled holes and the wires behind the luminaire can be fixed with wire clamps
to ensure that the fixing is firm.
Make sure that the power cord of the lamp is of sufficient length and not subject to tension or tangential force. Avoid excessive tension
when installing the connection of the lamp, and don't make the connection knotted.
The output connection should be distinguished, not to be confused with other lamps.
After installation, connect the low-voltage plug of the lamp with the low-voltage plug of the switching power supply.
Connect the tail wire of the switch power supply of the lamp to the mains, usually the brown wire (black) wire is the live wire, and
the blue wire is the neutral wire.Use the special LED driver of the lamp, do not mix it with other lamps.
Do not tear off the nameplate of the power supply and driver of the lamp.
Note: Non-professionals are not allowed to disassemble and repair. Our company has the right to disassemble and repair products without
replacement or warranty service.

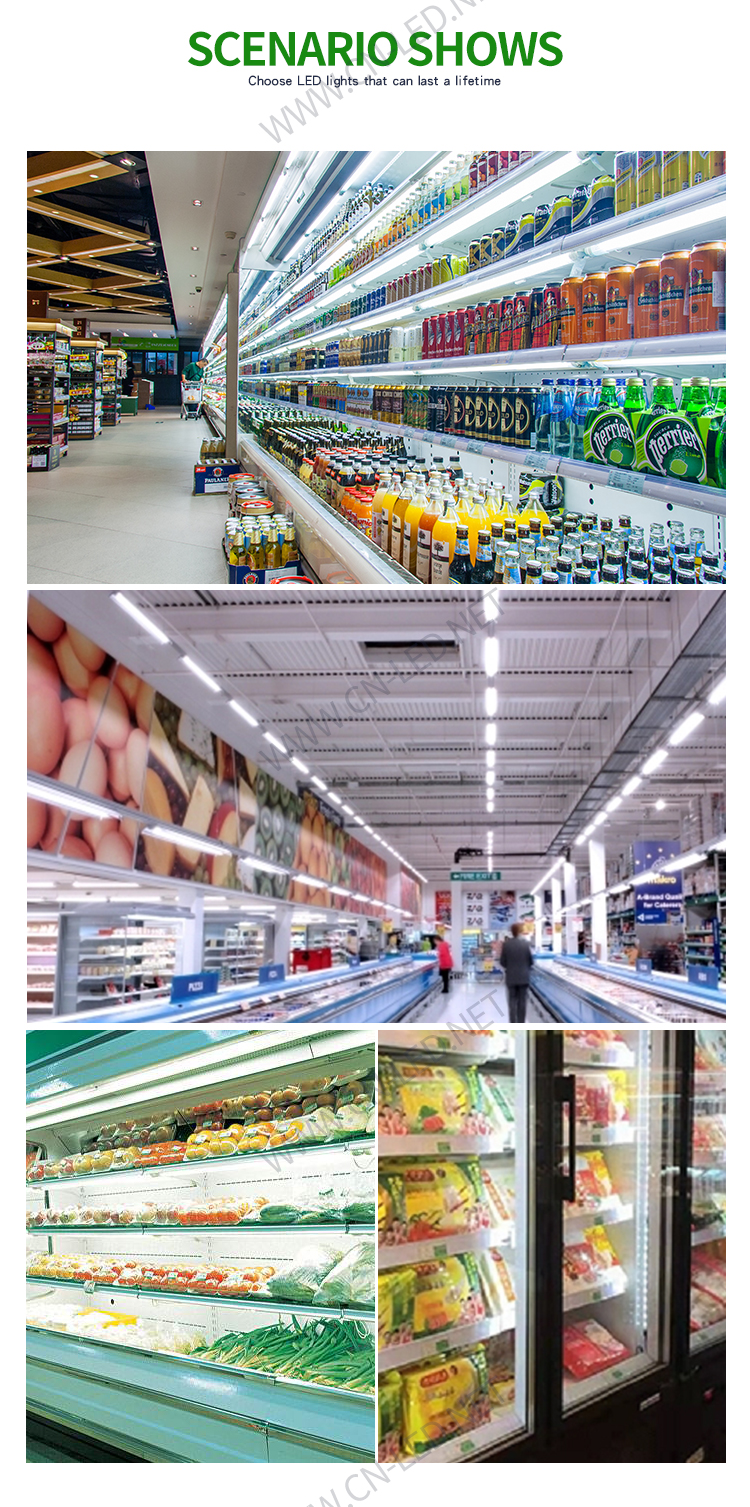

Scope of application
Offices, conference rooms, shopping malls, banks, stations, schools, hospitals and other places that require energy-saving and high color
rendering index lighting.
other:
1. The input voltage is DC12-36V, please confirm whether the local electricity meets the product before installation.
2. All the above test data are tested within the specified input voltage and rated output range. The working environment temperature is
25°C, the humidity is less than 85%, and the light-emitting angle is 120°.

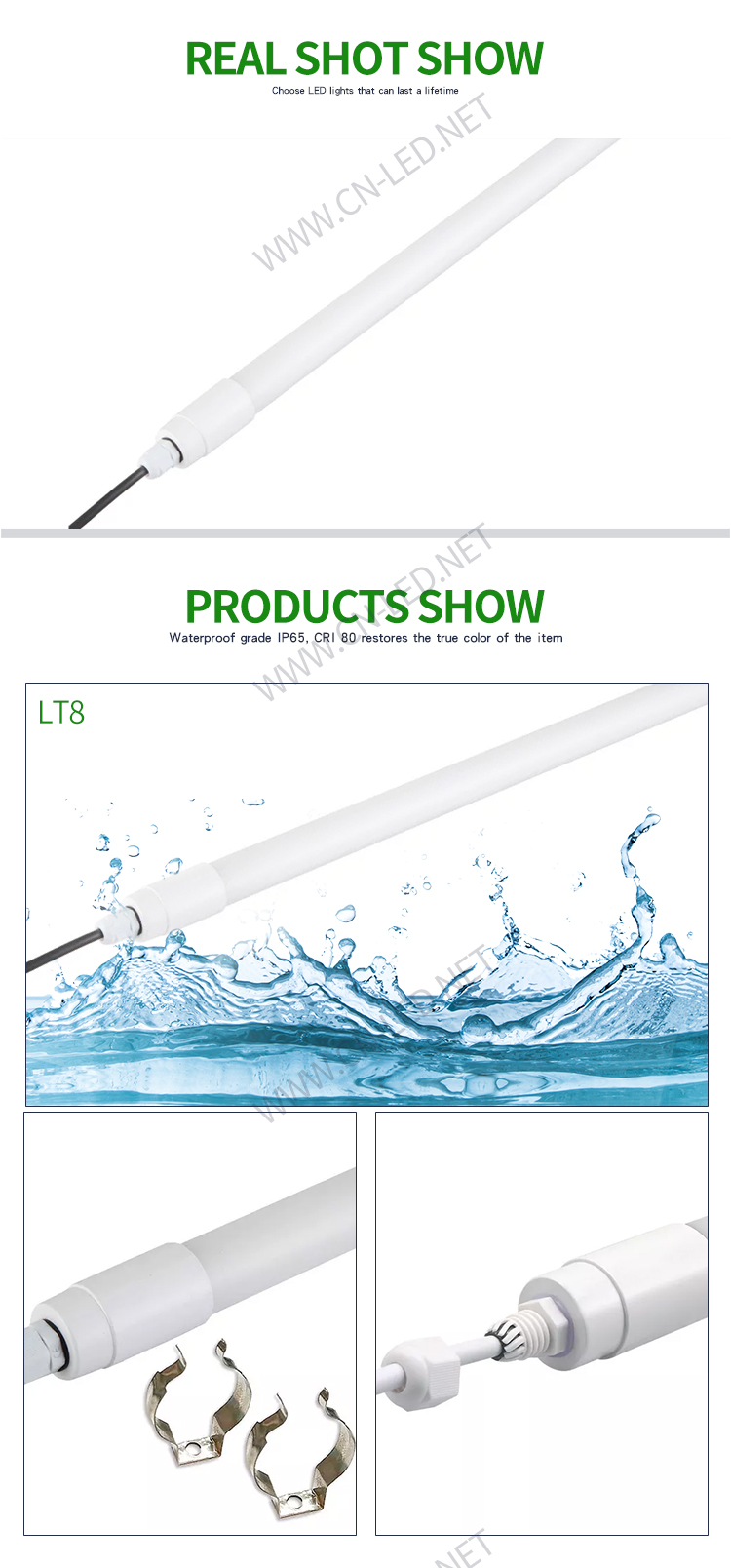

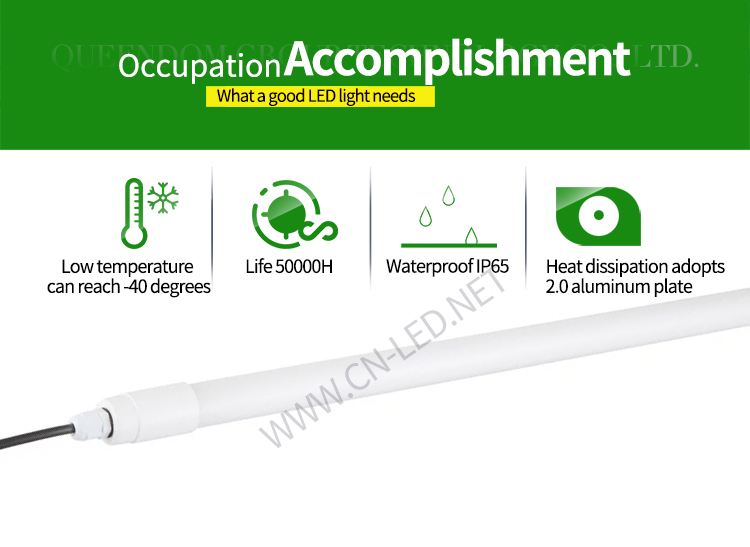

3. The protection level of this product is IP65, which can be used in occasions where water mist and vapor will be generated.
4. Check whether the voltage and current meet the requirements; do not disassemble the product without authorization.
5. If the product cannot work normally due to product quality defects, the warranty will be replaced within two years.
6. Unless otherwise specified, the tolerance of all dimensions is ±2mm
Precautions for safe use
The product can only be used outside the packaging.
Check for damage before use.
Don't try to repair it yourself, only professionals can repair it.
Keep children away from the product, and do not allow children to touch live equipment.
Keep the product away from open flames or high-temperature objects.
The product has expired and needs to be repaired and inspected or scrapped
