5mm Cylindrical LED

Views:1593
Release time:2021-11-12 20:01:40
Telephone:+0086 -13612789419


Description:Description:Product introduction: Model: 5mm flat head DIP Leds Size: φ3mm Features: low light attenuation, high luminous brightness, high efficiency and power saving, stable performance, long life, simple use and many other advantages. The product has undergone strict reliability experiments and has high reliability. RoHS, REACH certification Application areas: household appliances, 3C digital products, lighting, gifts, toys, traffic lights, communications products, etc.

Consulting service
Product details

Technology

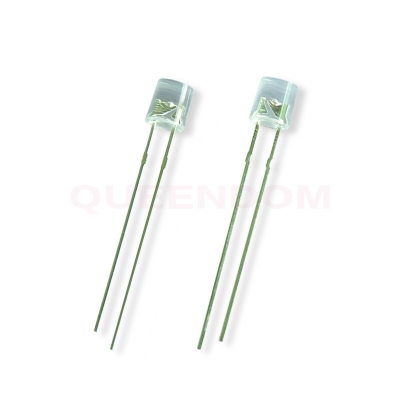

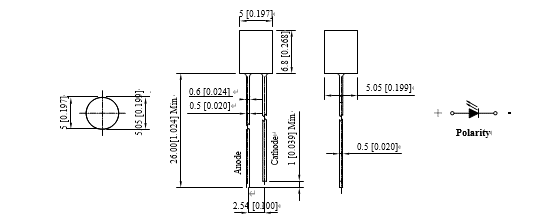

Model: 5mm   flat head DIP Leds   Size: φ5mm

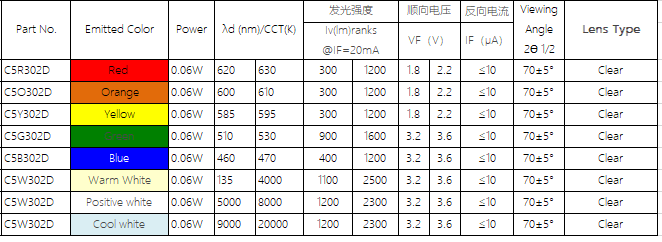

Peak parameters:


Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

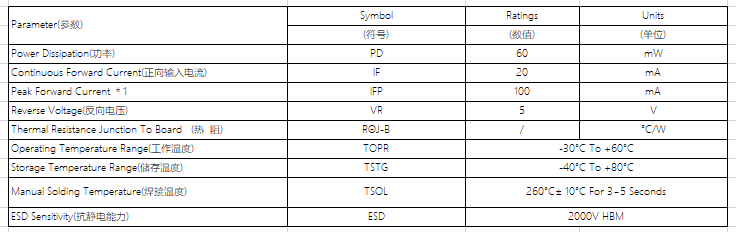

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.


Using Taiwan chip packaging, high temperature resistant glue, 99.99% pure gold wire welding; good product

consistency, low light decay, high brightness

Colloidal color: can be customized as required: colored fog, colorless fog, colored transparent, colorless and transparent

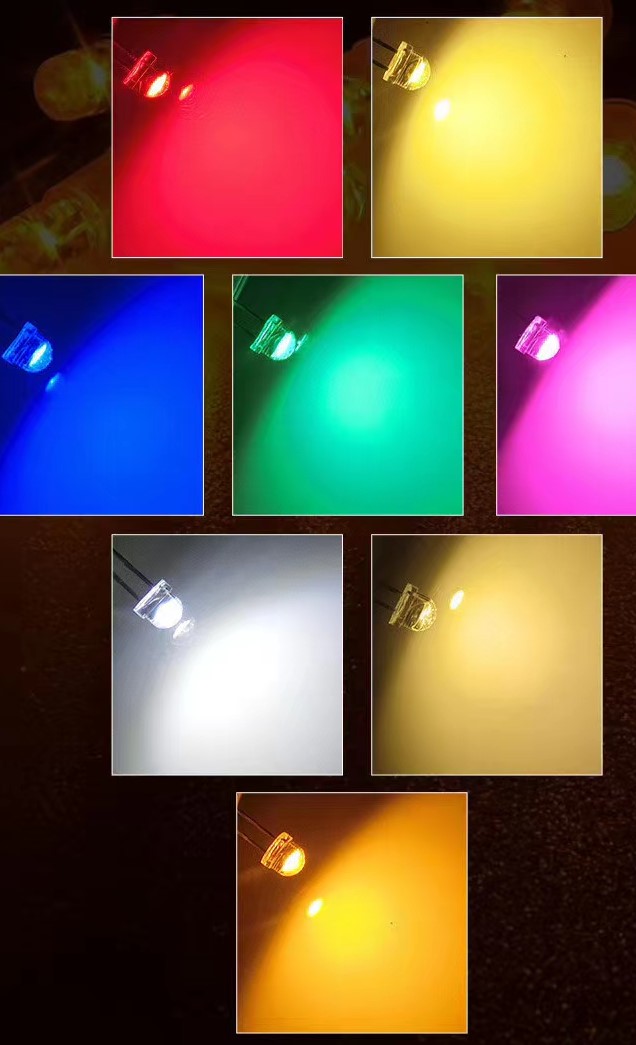

Luminous color: can be customized as required: white, red, orange, yellow, general green, emerald green, blue, two-color

Light-emitting angle: 25±3° (the angle can be adjusted according to customer requirements)

Lead-free standard: SGS certificate in line with EU ROHS standard

Application areas:

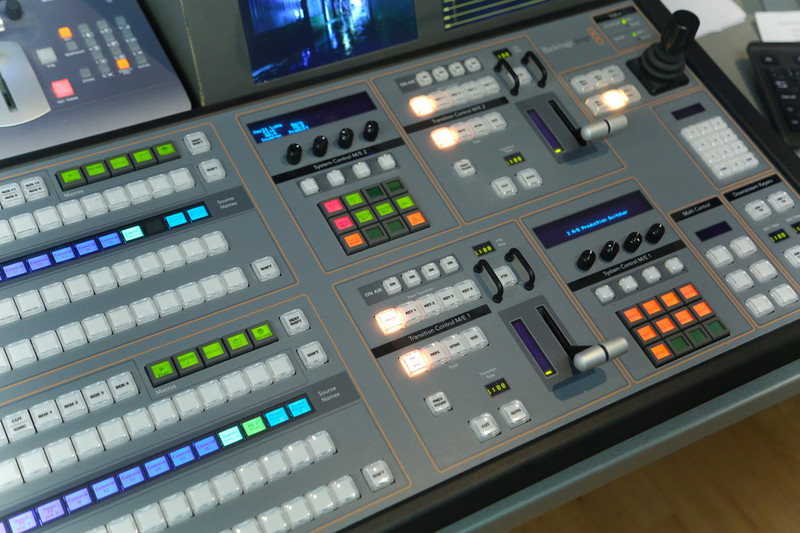

灯珠案例-控制台 (1).jpg

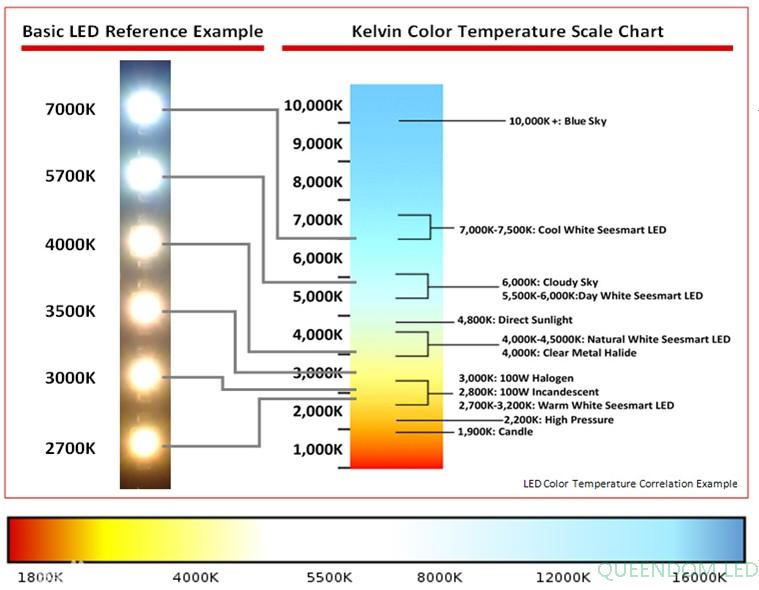

Color classification and color temperature display




LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc.

Signal indicator: city traffic signal lights, highway, railway and airport signal lights, electronic equipmen function instructions in major

and medium cities across the country;

Light color lighting: outdoor landscape lighting and indoor decorative lighting;

Dedicated general lighting: portable lighting (flashlights, headlights), low-light lighting (gallery lights, house lights, garden lights),

reading lighting (reading lights for airplanes, trains and cars), microscope lights, camera flashes, desk lamps, street lights ;

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

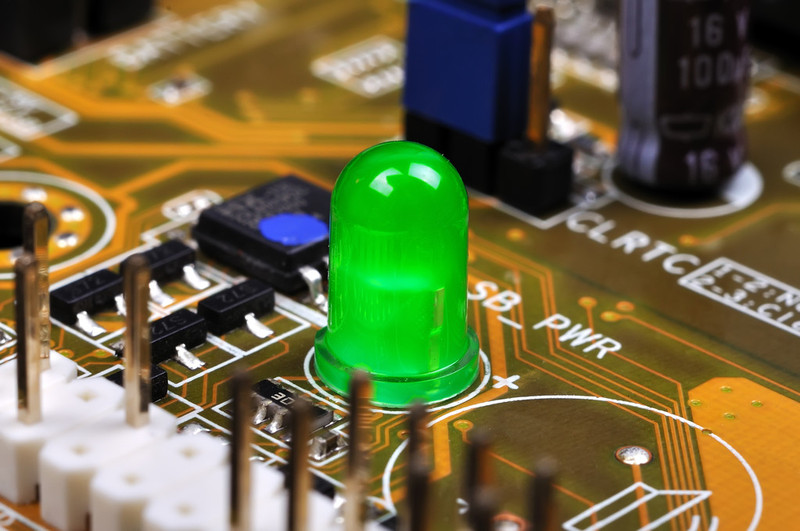

electrical product indicators (switches, audio, etc.), switch backlights, reading lights, and external brake lights,

tail lights, side lights and headlights, etc. .

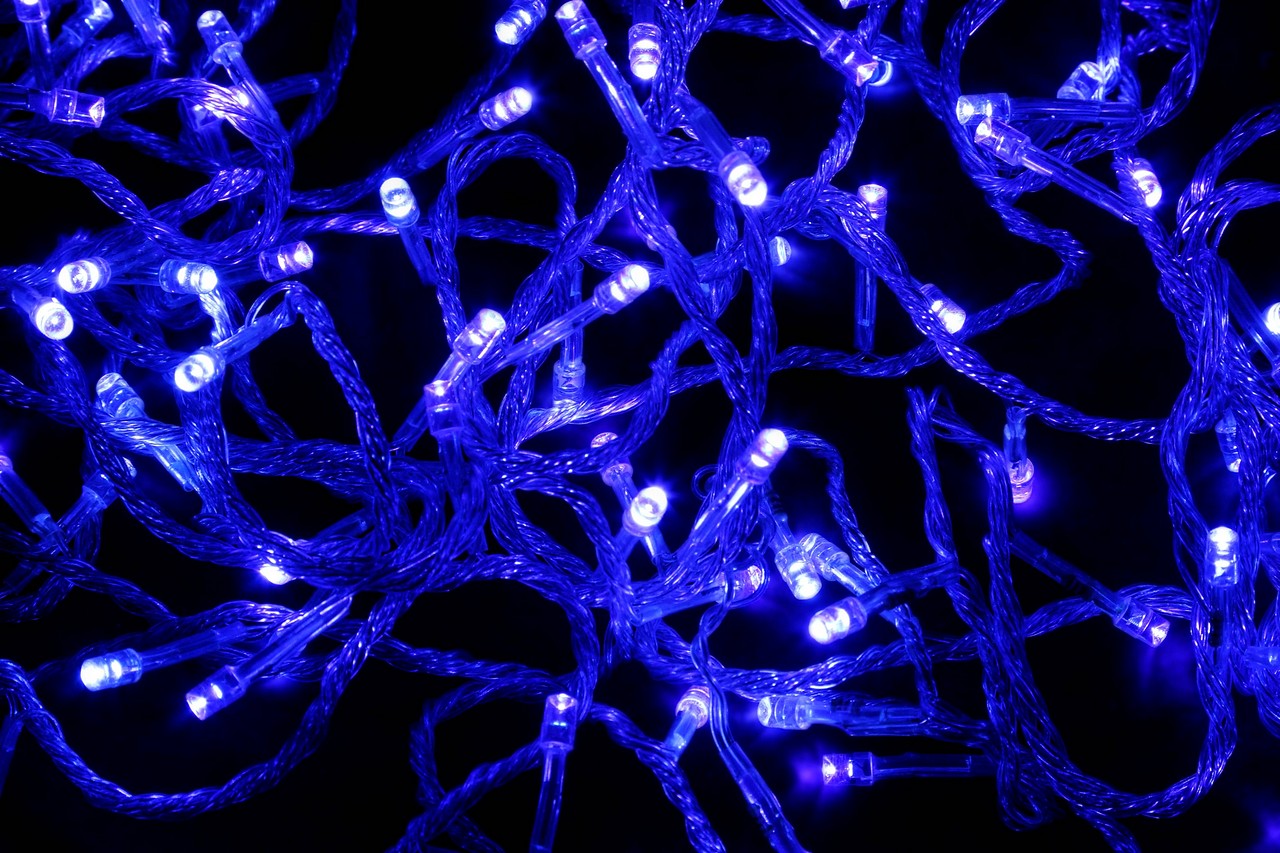

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.
