1608 SMD LEDs

Views:464
Release time:2021-01-23 15:25:03
Telephone:+86-0769-81305858


Description:Single color chip LED products are available in standard and high brightness colors. We adopt our proven AlGaAs, AlInGaP and InGaN technology and provide the broadest range of colors from well-known LED chip suppliers. These products use the industry standard footprint, with top-mount, reverse-mount, and right angle-mount packaging options. We offer lights with such colors like and color choices include green, red, yellow, white, blue and orange.

Consulting service
Product details

Technology

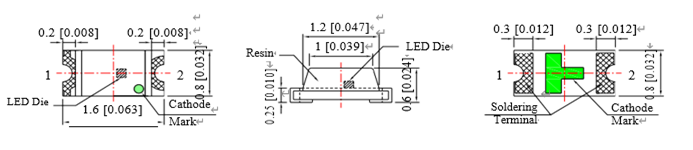

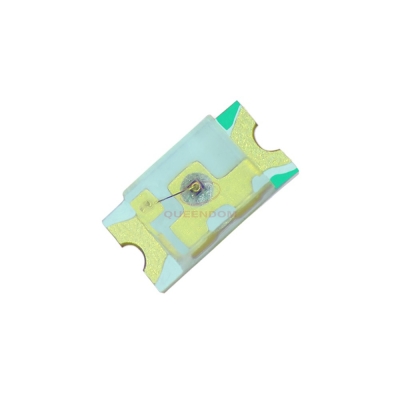

Model:1608 SMD LEDs    1.60mm×0.80mm×0.45mm[0603 SMD LED]



Peak parameters:

Ø   Absolute Maximum Rating(At TA=25°C)     SymbolRatingsUnits
ParameterPD60mW
Continuous   Forward CurrentIF20mA
Peak Forward Current *1IFP100mA
Reverse   VoltageVR5V
Thermal Resistance Junction To   Board   J-B/°C/W
Operating   Temperature RangeTOPRMinus 30°C To plus 60°C
Storage Temperature RangeTSTGMinus 40°C To   plus 80°C
Manual   Solding TemperatureTSOL260°C± 10°C For 3~5 Seconds
ESD SensitivityESD2000V HBM

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

Product number::Absolute Maximum Rating(At TA=25°C)

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c.   The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.

Application areas:

汽车装修灯 (2).jpg

汽车装修灯 (6).jpg

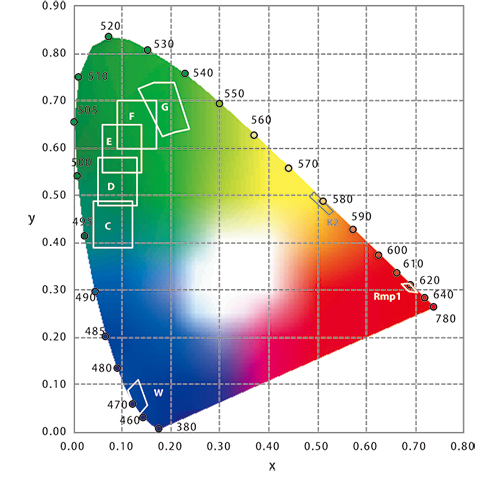

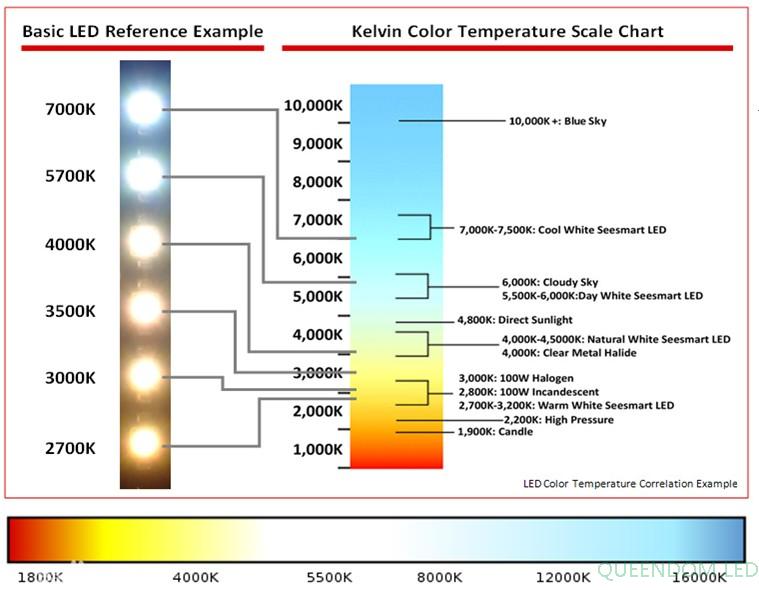

Color classification and color temperature display

20210122



Patch product features:

Small size   High brightness  Low attenuation  Instant lightingLong life Multiple colors to choose from

Product application:

Backlight module Automotive interior  High-end digital Signal indication Smart home  Industrial equipment

LED display: indoor and outdoor billboards, sports scoreboards, information displays, etc

reading lighting (reading lights for airplanes, trains and cars),

Safety lighting: miner's lamp, explosion-proof lamp, emergency lamp, safety indicator lamp;switch backlights,

Backlight: LCD, LCD TV backlight.

Automotive lights: including interior lighting and exterior lighting. The interior of the car includes dashboards,

electrical product indicators (switches, audio, etc.), reading lights, and external brake lights,

Other applications: consumer use, such as children's flash shoes, Christmas tree LED lights, etc.

SMDstands for Surface Mounted Devices, a special type of high power LED lights.With no wires, these devices provide less fuss and with

seamless application.Instead, SMDs have tiny metallic contacts that can be directly soldered tocircuit boards. Queendom's vast selection

of SMD LEDs are sure to fit yourneeds. Our surface mount device LEDs are energy efficient and provide asuperior lighting experience.

Queendomoffers a selection of SMD LEDs that are designed to meet the specifications ofyour application. Our SMD LED product offering

is most commonly used forportable devices, company consumer electronics, industrial handheld devices andmore. Contact Queendom today

for more information about the products below.

Singlecolor chip LED products are available in standard and high brightness colors.We adopt our proven AlGaAs, AlInGaP and InGaN technology

and provide thebroadest range of colors from well-known LED chip suppliers. These products usethe industry standard

footprint, with top-mount, reverse-mount, and rightangle-mount packaging options. We offer lights with such colors like and colorchoices

include green, red, yellow, white, blue and orange.

Singlecolor chip LEDs are used in a variety of applications including automotiveinterior and indication lighting, LCD and push button

backlighting, white goodsand appliances, industrial measurement and control systems, and for symbollighting and status indication

in computer peripherals and consumer goods.

Lowpower consumption, small size and easy assembly make the Chip LED ideal forbacklighting smartphone handsets as well as backlighting

industrial displays.Only aportion of Queendom's product information is available on this website. Pleasecontact Queendom for any unfound

or custom-made items.
