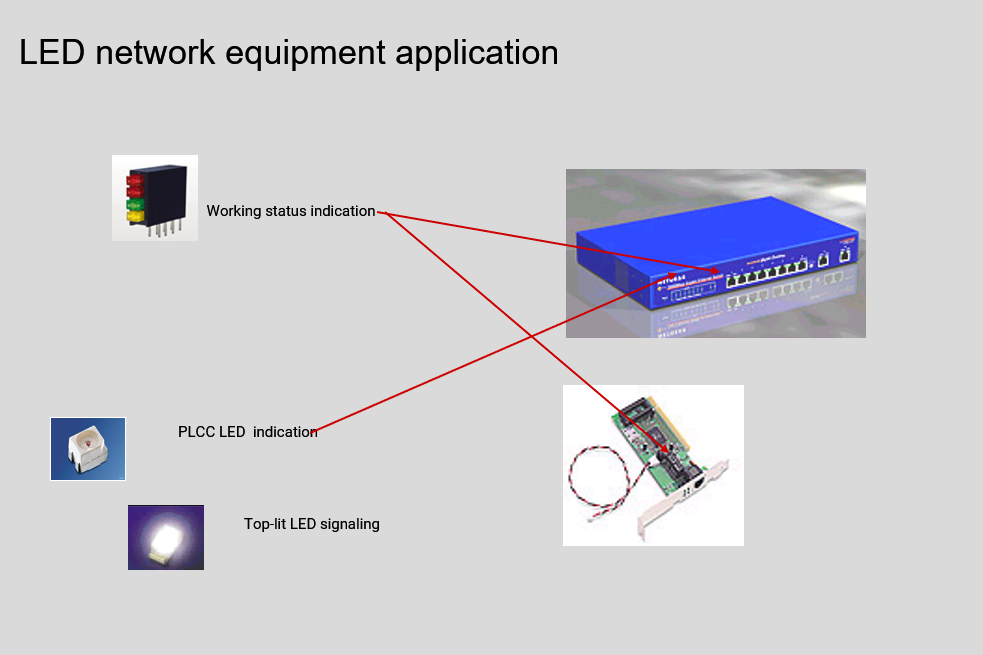

Network LED Application


Depending on the age and model of the router, the icons used for each LED may differ slightly from the examples shown in this article.


The LEDs on the router indicate the connection status between the router and the devices connected to the router. They also indicate the status of your Internet, WiFi, Ethernet and WPS connections

Power Indicator


LED color indicates speed: white or green for Gigabit Ethernet (1 Gbps) connections, and amber for 100 Mbps or 10 Mbps Ethernet connections.

Off: No device is connected to this Ethernet port.

Solid: A powered-on device is connected to an Ethernet port.

Blinking: The port is sending or receiving traffic.

Interrupter LED

Grid WPS indicator icon


Off: No WPS connection exists.

Blinking: WPS connection in progress.

Solid: WPS connection successful.
